Small Size, Big Sound!

Crystal clear audio with a dual subwoofer design

The Blackmagic Audio Monitor 12G has been designed using the latest advanced audio analysis technology to create a wide and smooth frequency response curve with crisp highs and powerful deep bass. You get great sounding music, extremely clear voice tracks and all the detail of effects tracks! Blackmagic Audio Monitor 12G is powerful and loud enough to hear your audio in noisy environments, such as broadcast equipment rooms that have a lot of cooling fan noise.

Precision Metering

Know your audio levels at all times

The two big bright audio level meters on the front panel feature multi colored RGB LEDs under each segment. You can select between VU or PPM or Loudness scales with a choice of EBU or BBC meters. With lots of meter segments you can monitor a very wide dynamic range, from -45 to +3 decibels, -12 to +12, or 0 to 7, depending on the scale you choose. In addition you can meter Loudness using standard Loudness, K-weighted, relative to Full Scale (LKFS) to normalize of levels for delivery to broadcast TV and video. The bright audio level meters are always clear enough to read, no matter if you are working in bright or dark environments!

Highest Quality Connections

Connect to SDI equipment in HD and Ultra HD!

Dedicated Compositing Inputs

Ultimatte 12 features 7 different input connections with loop outputs that are used to composite different elements together. These include foreground and background, along with holdout and garbage mattes, as well as additional layer inputs for superimposing additional images over the composited image. Ultimatte 12 even lets you use sources that are not synchronized when working with static shots!

When you’re working live and have multiple cameras shooting from different angles, it’s common for the green or blue screen to suffer from variations. The keyers built into live production switchers use the same keying parameters for all cameras, which complicates keying and image quality because each camera sees the green screen a little differently. Ultimatte 12 eliminates these problems with incredible new technology at an affordable price so it’s now possible to add keyers to every camera. That ensures you always get the best possible key! With the power of a dedicated keyer on every camera, Ultimatte 12 is perfect for live broadcast news, weather, sports, virtual studios and more!

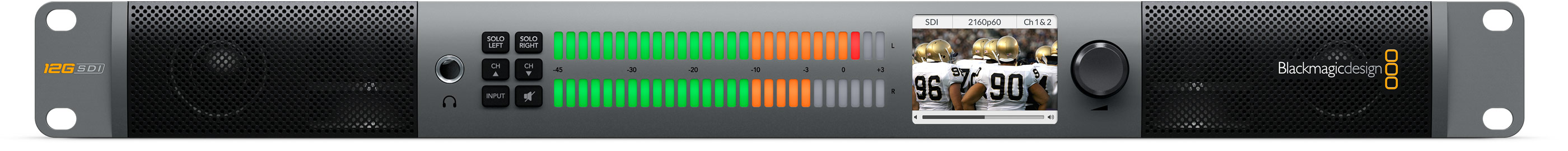

Blackmagic Audio Monitor 12G

Technical Specifications

Find ResellerPrint PDF

Description

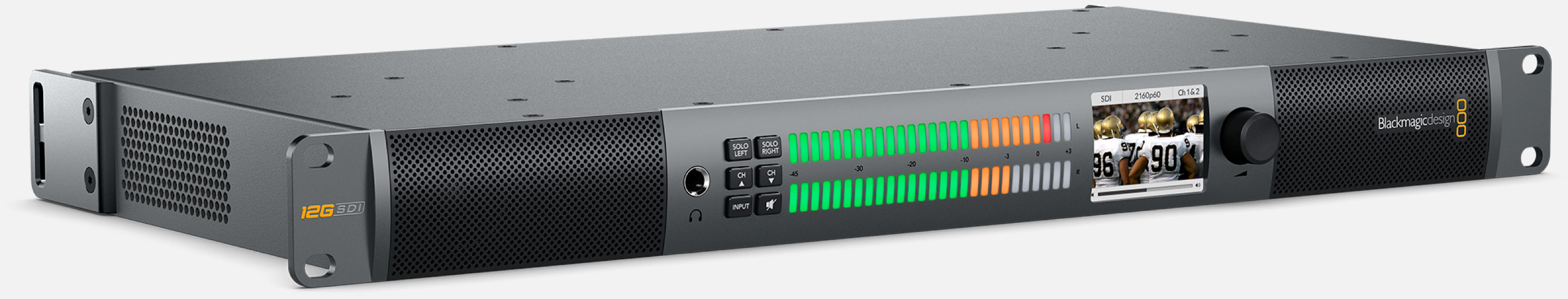

Blackmagic Audio Monitor 12G gives you fantastic quality audio monitoring in an impossibly small one rack unit size! With a dual subwoofer design combined with extra wide range speakers all backed by a super powerful class D amplifier. Blackmagic Audio Monitor 12G has been designed to be both an audio and video monitoring solution so you get advanced 12G-SDI up to 60p input, as well as balanced XLR analog audio, balanced AES/EBU digital audio and consumer level HiFi audio inputs. Blackmagic Audio Monitor 12G features an elegant design with big bright multi color VU, PPM or Loudness audio meters and a built in LCD for monitoring video sources. You even get HDMI 4K output so you can connect a television for big screen video monitoring of your SDI sources!

Download ManualDownload Software

Price

$1,195

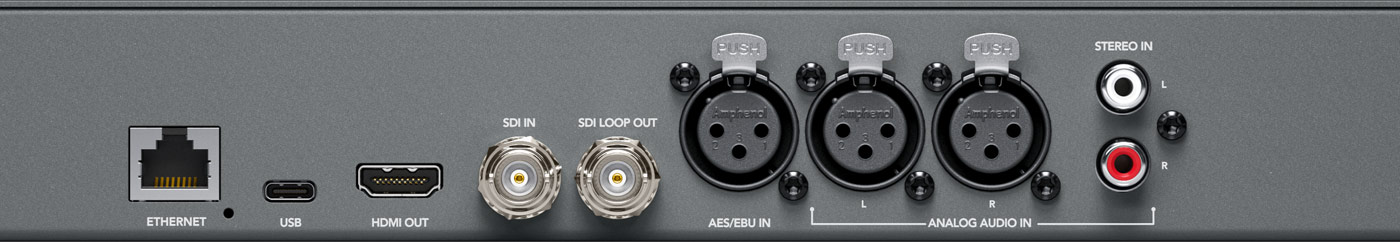

Connections

SDI Video Inputs

1

SDI Video Outputs

1 loop out.

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Outputs

1

Multi Rate Support

SDI and HDMI are switchable between standard definition, high definition and ultra high definition.

SDI Video Loop

1 x reclocked 10-bit SD/HD/3G-SDI, 6G-SDI and 12G-SDI.

Analog Audio Inputs

2 x XLR. 2 x RCA HiFi.

Analog Audio Outputs

1 x 6.5mm headphone socket.

Digital Audio Inputs

1 x XLR.

Built in Speaker

Stereo with 2-way crossover and independent stereo subwoofers.

AES/EBU Audio Inputs

2 channels balanced 110O AES/EBU via XLR.

SDI Audio Inputs

16 channels embedded in SD, HD and UltraHD 4K.

SDI Audio Outputs

16 channels embedded audio loop out.

HDMI Audio Outputs

8 Channels embedded in SD, HD and 4K.

Ethernet

1Gb/sec for configuration and firmware updates.

Computer Interface

USB-C for configuration and firmware updates.

Metering

2 x 27 RGB segment LED VU, PPM or Loudness meters.

Modes

Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel.

1.

Redundant power

Dual independent 110-240V power supplies.

2.

USB-C

Quickly update firmware
via USB.

3.

Ethernet

Connect Smart Remote 4 or custom control devices.

4.

GPI Trigger

Used for remote control of on air tally indicators.

5.

Keying Sources

7 SDI inputs and loop outs for background, foreground etc.

6.

Program Outputs

SDI connections for program, fill and matte outputs.

7.

Talent Reference

Connect a talent monitor so actors can see their composite.

8.

Preview Monitor

SDI inputs and outputs for connecting operator monitors

Find Reseller

Blackmagic Audio Monitor 12G

Broadcast quality analog, AES/EBU and SDI audio monitoring with advanced 12G-SDI Ultra HD technology!

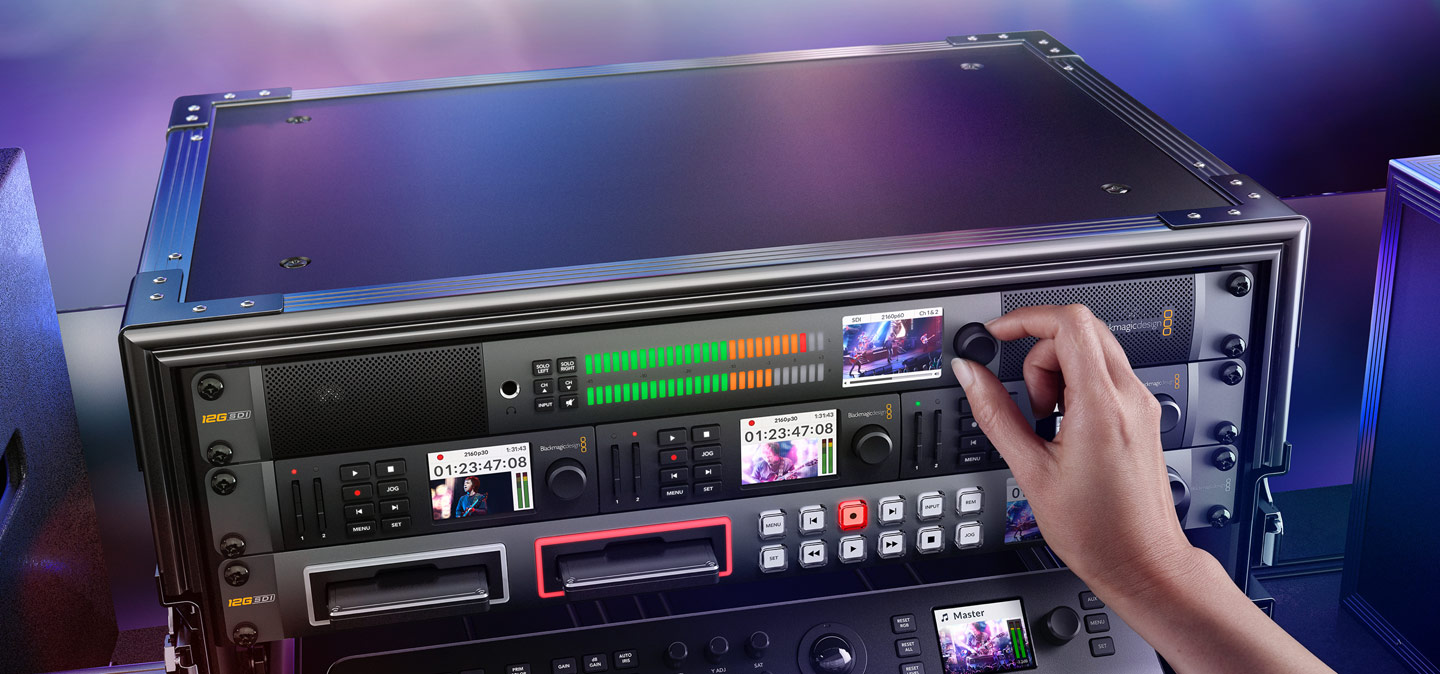

Monitor Anywhere

Great audio wherever you work

It’s never been easier to put the highest quality audio and video monitoring everywhere you need it. Install Blackmagic Audio Monitor 12G in broadcast racks audio on decks, video servers and live transmissions. At the push of a button you can switch between stereo pairs of the SDI input, great for monitoring alternative language tracks. The compact size is perfect for portable flyaway kits and broadcast trucks where space is tight, or in edit and audio post production facilities where precise audio quality is essential!

Monitor Anywhere

Great audio wherever you work

It’s never been easier to put the highest quality audio and video monitoring everywhere you need it. Install Blackmagic Audio Monitor 12G in broadcast racks audio on decks, video servers and live transmissions. At the push of a button you can switch between stereo pairs of the SDI input, great for monitoring alternative language tracks. The compact size is perfect for portable flyaway kits and broadcast trucks where space is tight, or in edit and audio post production facilities where precise audio quality is essential!

Machined Metal Design

Milled from solid aluminum
for sound free of vibrations!

The machined metal design is attractive as well as extremely strong, which means you get a robust chassis that's vital for better quality sound without rattles and vibrations. The elegant front panel features audio level meters, LCD video monitor and a reliable contact-less volume control, so you never get deterioration and crackling in the audio when adjusted. To select audio pairs, left and right solo, mute and input, there is a built in illuminated keypad and for private monitoring there is a built in headphone socket.

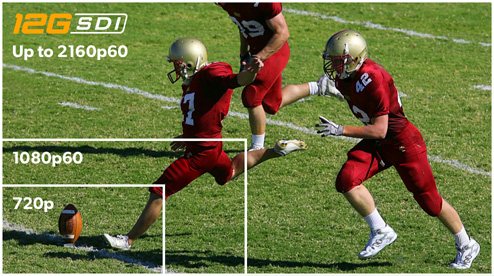

Advanced 12G-SDI

Blackmagic Audio Monitor 12G supports all common SD, HD and Ultra HD video resolutions. The 12G-SDI input and HDMI 2.0 output also support high resolution Ultra HD monitoring. The advanced technology of 12G-SDI is 48 times faster than standard HD-SDI so you can work at resolutions and frame rates as high as 2160p60, all over a single cable! You can connect to Ultra HD TVs and projectors with HDMI 4K and you can monitor any of the 16 audio channels on the 12G-SDI input.

Advanced 12G-SDI

Blackmagic Audio Monitor 12G supports all common SD, HD and Ultra HD video resolutions. The 12G-SDI input and HDMI 2.0 output also support high resolution Ultra HD monitoring. The advanced technology of 12G-SDI is 48 times faster than standard HD-SDI so you can work at resolutions and frame rates as high as 2160p60, all over a single cable! You can connect to Ultra HD TVs and projectors with HDMI 4K and you can monitor any of the 16 audio channels on the 12G-SDI input.

Both Audio and Video Connections

Blackmagic Audio Monitor 12G has all the audio and video connections you need to make it the
perfect monitoring solution in any environment. With balanced analog XLR audio, balanced
AES/EBU audio and consumer level HiFi audio inputs it’s easy to connect any audio source.
You can select between inputs quickly using the input button situated on the front panel.
The 12G-SDI video input and HDMI 2.0 video output both support embedded audio
and let you connect to the latest high resolution video technology.

Internal Power

Built in power supply for easy connection

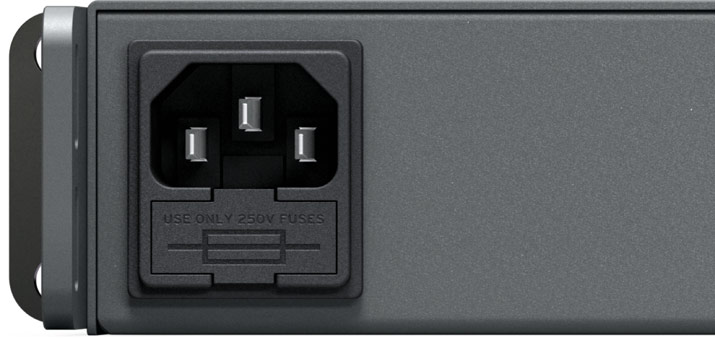

Blackmagic Audio Monitor 12G has a built in power supply for 110-240V mains power. To power the unit all you need is a standard IEC cable, which removes the need for separate power ‘bricks’ and additional messy cabling. The wide input voltage means you can use the Blackmagic Audio Monitor 12G in any international location!

Internal Power

Built in power supply for easy connection

Blackmagic Audio Monitor 12G has a built in power supply for 110-240V mains power. To power the unit all you need is a standard IEC cable, which removes the need for separate power ‘bricks’ and additional messy cabling. The wide input voltage means you can use the Blackmagic Audio Monitor 12G in any international location!

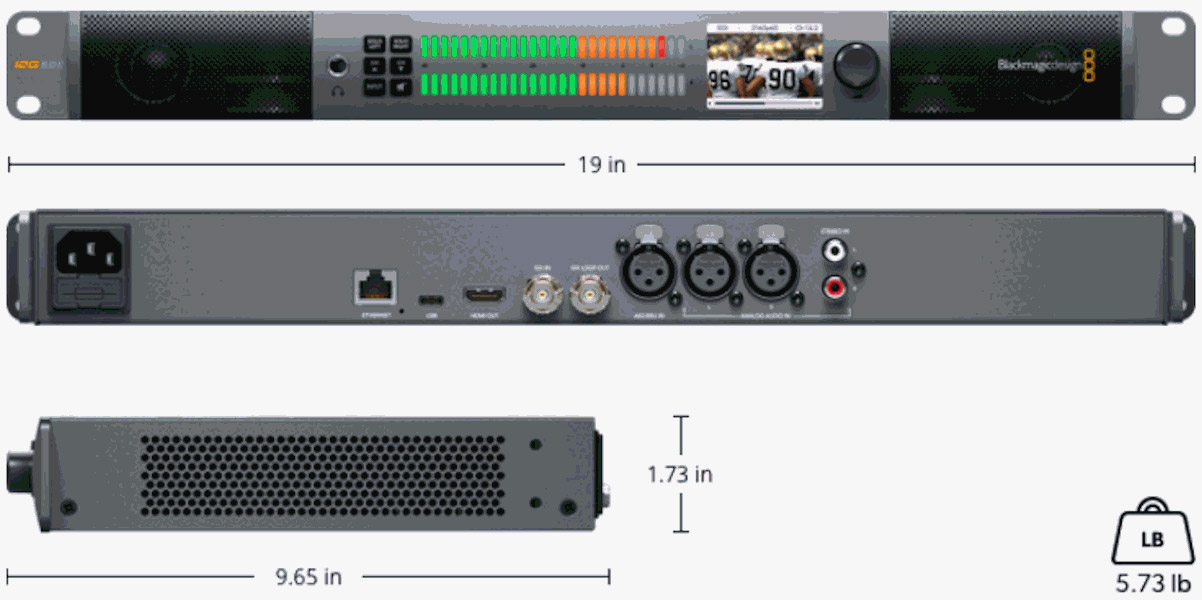

Physical Specifications

BG IN

Source input containing the new background such as a virtual set feed or matte painting.

BBG MATTE IN

Used to displace opaque areas in the background so foreground elements can appear behind them.

G MATTE IN

Used when overshooting to composite a virtual set into the shot that is larger than the green or blue screen.

FG IN

Foreground input connector for attaching your source camera. This is the talent feed for your Ultimatte.

Optical Scaling and Sub-Pixel Processing

Incredible conversions between SD, HD and Ultra HD!

Teranex converters can perform up and down conversions between NTSC or PAL SD, 720 or 1080 HD and Ultra HD. They feature a wide range of aspect ratio options and real time, optical quality scaling algorithms that simulate an optical zoom. Sub-pixel processing and multi-directional diagonal filters are also used to eliminate “jaggies.” That means you get the cleanest looking conversions and images retain as much detail and clarity as possible!

High Quality De-Interlace

Patented PixelMotion technology and multi direction filtering

Teranex’s proprietary and patented PixelMotion de-interlacing algorithms create perfect progressive frames for conversion by adjusting the aperture on a pixel-by-pixel basis. That means you get improved image quality because the vertical resolution is maintained and source detail is preserved!

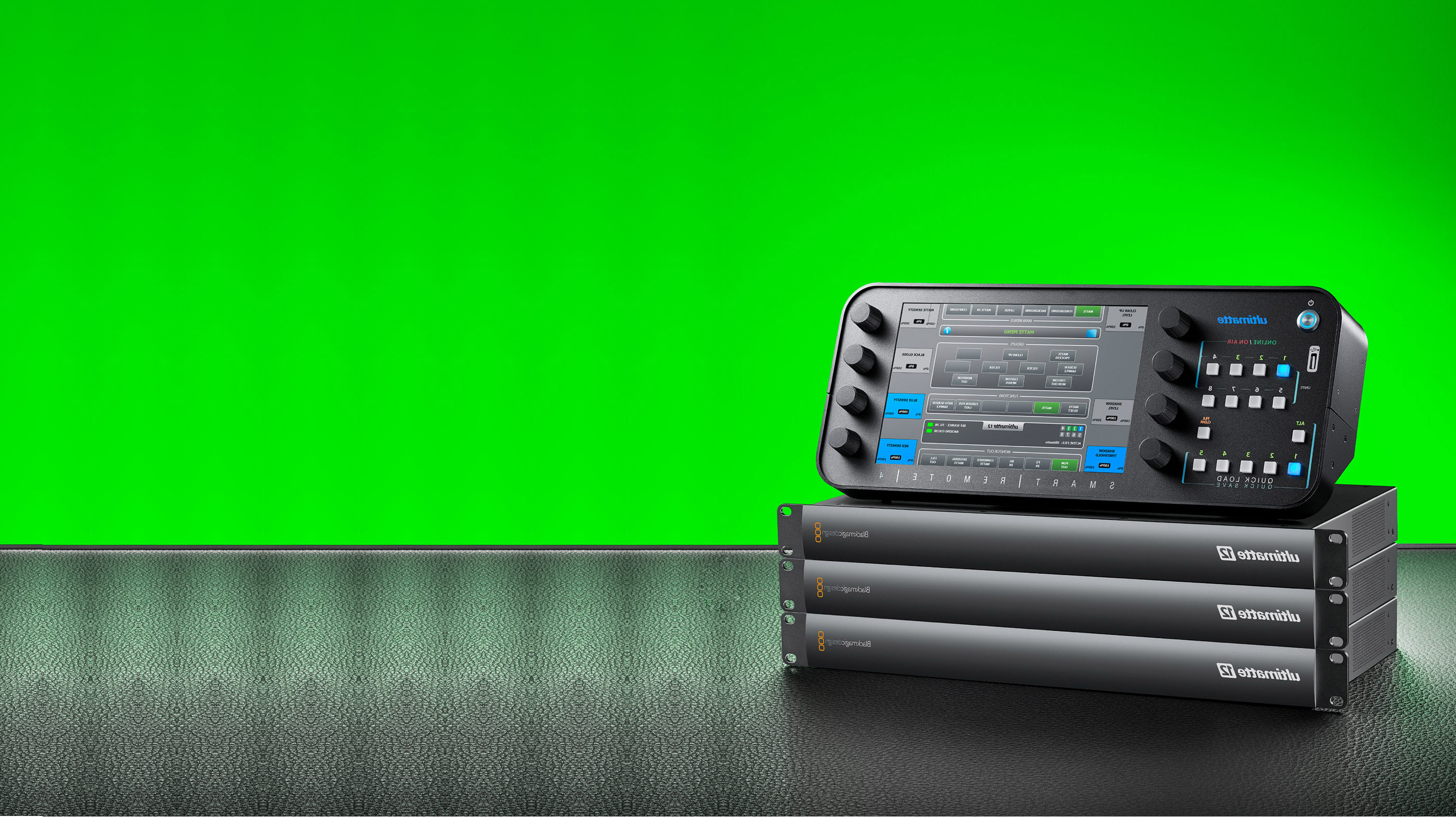

Powerful Software and Hardware Control

Get innovative software
control or choose a hardware panel

Software

ATEM 1 M/E Advanced Panel

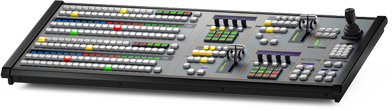

ATEM 2 M/E Broadcast Panel

Software

ATEM 1 M/E Advanced Panel

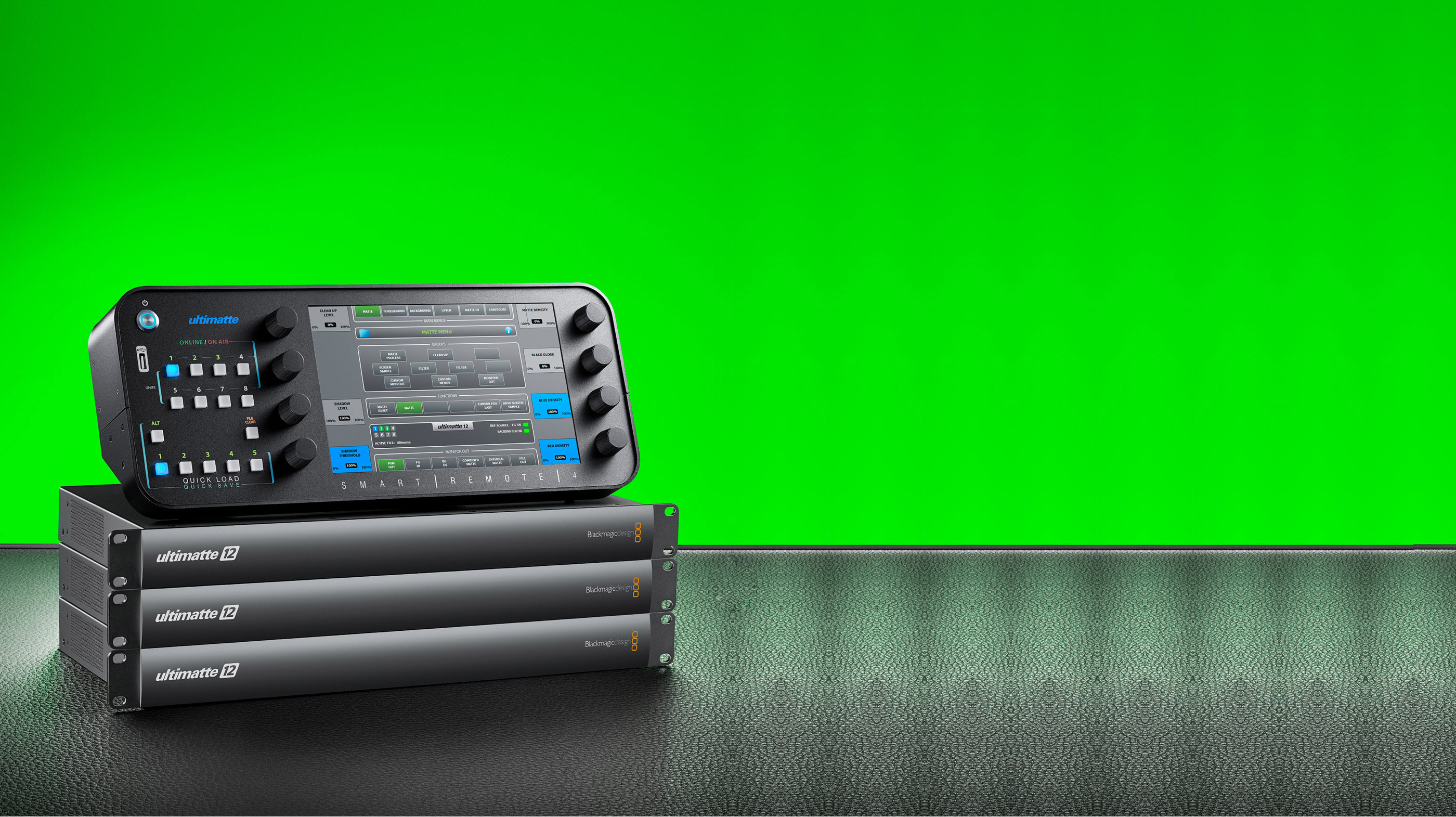

Ultimatte Smart Remote 4
