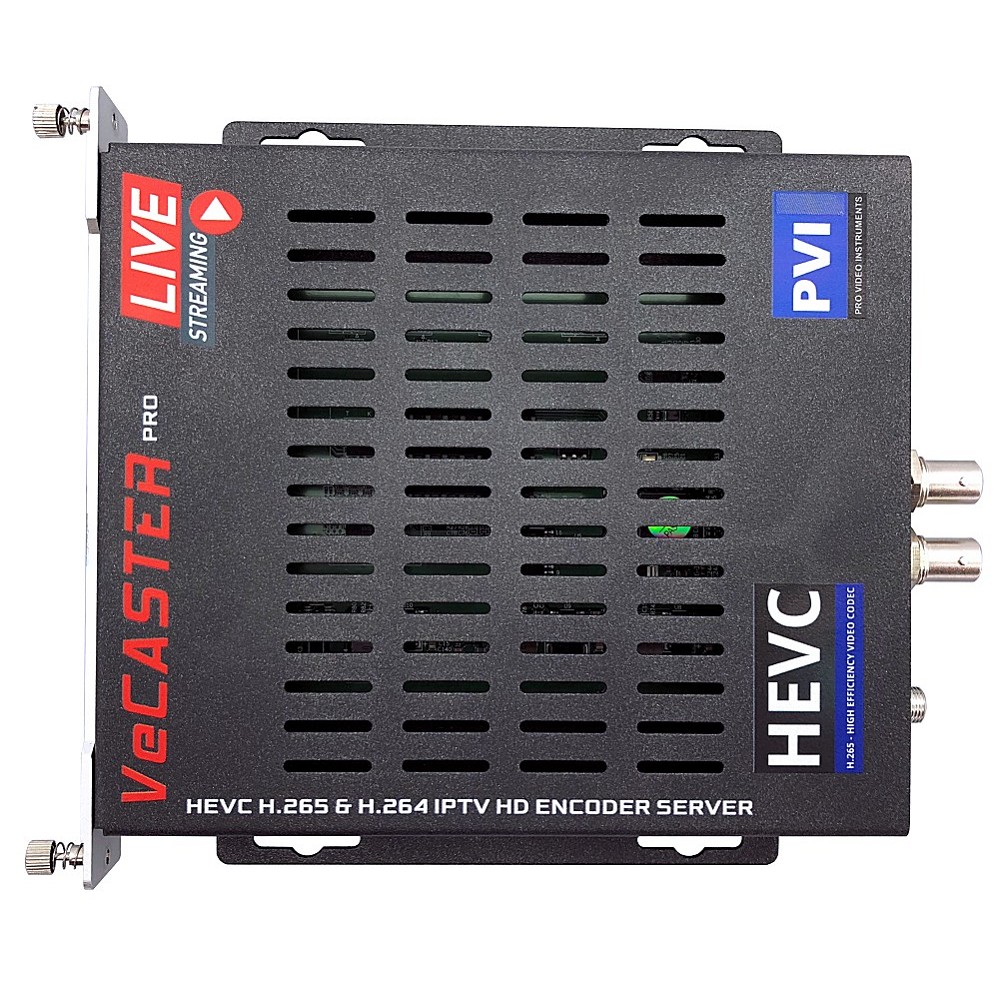

VECASTER-HD-SDI is a Professional HD-SDI IPTV Encoder server for Live IPTV Streaming with simultaneous H.264 and HEVC encoding

VECASTER-HD-SDI is a Professional HD-SDI IPTV Encoder server for Live IPTV Streaming with simultaneous H.264 and HEVC encoding

In Stock, Get It by Tomorrow
$1,695.00
Free Ground Shipping.
0649070908108

This Model Key Features:

•Distribute any SDI Full HD Video DIRECTLY to unlimited Smart TVs, Mobile Phones, Tablets, PCs, IP Box
-IPTV Over Lan - WiFi - Internet

•Plays Directly on Any Smart TV - Add More VeCASTER units for More Channles
-Change Channel on TV Via TV Remote Control

•Built-In Gigabit Server to stream directly to hundreds of simultaneous Player
-Can also stream to Youtube - Wowza - Akamai and others

•Dual Simultaneous Encoders and scalers to create two versions of the same channel
-optimize for TV play and mobile Play simultaneously

•Simultaneous Live Out in M3U HLS RTMP UDP HTTP RTP RTSP - H264/H265 - Mpeg1L2 / AC3 / AAC Audio Encoding - 5 Logo Generators
Works Anywhere

Application examples of How To Use This Model:


REVIEWS:

- -

Description

SDI to IPTV Live Streaming HEVC H.265 + H.264 IPTV Hardware Encoder

Real TimeHardwareHEVC H.265 H.264 IP Video Encoder, 3G HD SDI Embedded, 480i / 720p / 1080i / 1080p Full HD Streaming Server, Mpeg2 AAC AC3 Audio Encoding

Built-In Simultaneous M3U8, HLS, HTTP, RTMP, RTSPIPTV Streaming Server, Four Scalers and Multi-Rate per each channel, Logo Inserters

PN: VECASTER-HD-SDI



The VECASTER-HD-HEVC is a professional Single channel SDI To IPTV Live Streaming hardware video encoder, supporting both selectable HEVC H.265 and H.264 hardware live encoding, ideal solution for any professional SDI to IP Streaming Live video distribution over any IP network, delivering perfect Full HD quality and completeness of features so the stream can be watched on any player device such as IPTV Boxes, Direct on Smart TVs by installing their iptv app, any smart phone, any tablets, direct to web browsers play in html5 without need to install any plugin, VLC, over Lan Wifi Wan Internet.

The HEVC H.265 compression mode is the newest standard, today supported by all Smart TV iptv player apps, VLC, and the newest iptv player devices and software, specifically designed to improve over the internet transmissions and reduce the used bandwidth by up to 4 times respect the classic H.264 compression, making it possible to stream DVD size videos @ 100 kilobit/s and Full HD from 250 Kilobit/s up, depending from the video content.

VeCASTER HDMI to IPTV Live ip streaming encoder stream to any ip player device over any network


The VECASTER-HD-HEVC connects directly to the existing LAN Switch, or wifi, or internet router and streams the SDI Video input in super ultra low latency to any device, perfect also for Live Streaming Applications.

Thanks to the built-in server, the VECASTER-HD-SDI can serve directly hundreds of simultaneous playback devices in both unicast and multicast, without requiring additional hardware: simply connect the VECASTER to your network and start watching on any device.

In Homes, Commercial, Hospitality, one or multiple VECASTER-HD-SDI can play directly on any SMART TV installing the IPTV App over wired Lan or Wifi, without need of any additional components behind the TVs - Direct.


The VECASTER-HD-SDI can also stream directly over the internet to different destinations or to the web via the existing network router, as also connect to additional repeater servers such as youtube, facebook, amazon, wowza, and any other, so the VECASTER-HD-SDI stream can be delivered to an Unlimited audience anywhere, also with user and password to play.

The VECASTER-HD-SDI supports all the key IP Streaming protocols at the same time such as RTMP (youtube), M3U8 (smart-tvs), HLS ( direct play in browsers ), UDP, RTP, RTSP, ONIF, HTTP, encoding the SDI input into TWO simultaneous versions ( Multi-rate ) with selectable and independent resolution, frames, formats, logos, etc, making it possible to serve different audiences at the same time as example Full HD for local Lan devices, and a specific quality for internet and mobiles.


Up to Four Logo or texts can be inserted per each of the two simultaneous encoded versions, such as station logos, watermarks, QRcodes, info, etc.

To play the stream on any device is simple, just put the ip link from the VECASTER-HD-HEVC in the player and start play.

The VECASTER-HD-HEVC delivers incredible video quality and power, thanks to its innovative broadcast video processors and live streaming hardware engine, capable to serve high traffic demand.


Multiple VECASTER-HD-HEVC can be installed at the same time on the same distribution network, anywhere, adding and expanding the available IPTV Channels at any time.

A Rack-Rail kit allows the installation of up to 15 VECASTER-HD-HEVC in a 4 RU rack space, without requiring any special forced air cooling, noiseless, fanless, cool and quiet.


The VECASTER-HD-H264 is the perfect solution for any professional HD SDI Video to Live IP Streaming Video Broadcasting and Distribution, where Total Video Quality, Performances, Reliability, and best cost per channel are most wanted.


Features & Benefits
  • HEVC H.265 Video Encoder - The Ultimate technology for the best video quality and less used bandwidth
  • Also Selectable H.264 Video Compression - Can encode one stream HEVC and one in H.264 compatible to any device
  • SRT Mode for super ultra low latency streaming
  • LIVE SDI Video distribution over the existing IP Networks to an unlimited number of TV & IPTV Players
  • Direct To SmartTVs m3u8 installing on the SmartTV any of the many available SmarTV IPTV Apps
  • Direct To Any IP Box in both multicast and/or unicast via any protocol such as udp rtp rtsp m3u8 rtmp http hls
  • Direct To Iphones Ipads Galaxy Android HLS play direct from the device browser no app required
  • Direct To PCs using any Windows Mac Linux video player such as VLC, Media Player, Kodi, and similar
  • Direct To Internet using the existing router with a public ip
  • Direct To YouTube to stream live TV & Radio channels to millions of users with or without login
  • Direct To FaceBook, YouTube Red, Wowza, Akamai, and any other media server with token, login, any
  • ADVANCED EDID control to manage any video source automatically
  • Built-In COLOR BARS HD reference signal for installation and in case of input video loss
  • Two Simultaneous Encoding formats with selectable scaling & formats
  • SDI digital-perfect quality streaming at any distance up to 1080p 60 Full HD
  • Any SDI Resolution including SD / HD / and typical Computer ones
  • Frame Rate Encoding Control per each channel, from 1FPS to 60 fps
  • Video Scaler per each of the two encoded streams, to resize the video input to any resolution out for any specific Target Audience
  • Real Time Super-Fast processing for Live Real Time Applications
  • Simple installation and operation over any existing switch / router / network via computer and secure login Web Interface
  • Add Multiple units for more channels by setting different IP addresses per each unit
  • Selectable Audio Format per each channel including Dolby Digital AC3, Mpeg1L2, AAC
  • ALL-STREAMING MODES are built-in and can be activated channel by channel at same time as:
    M3U8 / HLS / RTMP / RTP/ RTSP / HTTP / UDP / ONVIF
    Built-In Multicast - Unicast server for direct streaming to hundreds of players on LAN / WIFI / WEB.
  • Super Ultra-Low Latency - in UDP multicast streaming is <200 Msec from SDI input to screens vision
  • Broadcast Video Encoding processors for the ultimate video quality and the lowest bandwidth today possible
  • Stream Descriptors control to edit Programs Names, PIDs, Channel Numbers, Descriptors
  • Modular Design for total reliability, add more VeCASTER units, Modular, expandable, manageable, flexible.
  • Compact Dimensions & Noise-Less Operation fits in every application, anywhere
  • Expandable Up To Unlimited Channels on site by adding more VeCASTER units on your network
  • 5 Year warranty included.
  • Simple Installation, For Everyone, Anywhere, In Minutes, For the Best Price on the Market

Documents

*All Specifications Subject to Change Without Notice

DOCUMENTS
VECASTER HD SDI PDF

Specification

*All Specifications Subject to Change Without Notice

TECH SPECS GENERAL
Model Name VECASTE HD-SDI
SKU 0649070908108
Power 100-240 VAC 50/60 Hz, 10W max. 5W Typical via external pro power adapter with secure screw-lock
Cooling Fan-Less / Noiseless
Temperature/Humidity +32 F° to +115 F° (0 C° to +46 C°) / 10% to 80% non-condensing
Vibration NSTA 1A in carton
MTBF 55,000 hours
Compliance FCC Class A, IEC60065, EN61000, CE, RoHS, RCM C-Tick
Enclosure Type EMI Shielded Metal
Stand-Alone Mounting Stand-Alone with side mounting Ears
Rack Mounting Up to 15 VECASTER unit can be installed using our optional Rack Bars in a 4RU Rack Space
Enclosure Dimensions Total with side ears W 6.5"(164mm) x D 6.7"(170mm) x H 1"(26mm)
System Weight 0.6 lbs. (250 grams)
Carton Dimensions (Individual) W 9.5"(241mm) x D 13"(330mm) x H 4.7"(119mm)
Shipping Weight 2.2 lbs. (1 kg)
Warranty 5 years
Reliability Pro Modular Design - 24/7 Operation
System Maintenance Modular Design allows on-site replacement of any encoder without removing the system from site
INSTALLATION
Remote Control Via PC and web interface via secure login
Simple Setup Simple configuration via Login-Protected Web Interface and intuitive windows
IPTV Networks Built-In IPTV Server to drive directly any LAN, WIFI, INTERNET, with M3U8, HLS, RTMP, HTTP, UDP, RTSP
SDI Inputs Licensed SDI inputs compatible to any SDI Video source
Multi-Units Multiple units can be used on the same network for more channels, by simply configuring different IP Addresses per each unit
VIDEO INPUT
SDI 1 port of 3G HD SDI Embedded input - compatible to any SDI Video Source up to 1080p resolution
SDI Version Compatible to any SDI source including SDI 2.0 ( Max input resolutions 1080p 60 )
EDID Control Advanced EDID Auto control compatible with any SDI Video source
AUTO Detection Auto frame-rate input switching
Video Resolutions 480i / 480p / 576i / 576p / 720p / 1080i / 1080p ( Selectable SCALER)
Sub Resolutions and PC Resolutions are also supported on both SDI Inputs and the Target Encoding
Frames Ratio 1 to 60 FPS selectable stream by stream
Aspect Ratios 16:9 / 4:3 / Film mode detection (3:2 pull-down)
AUDIO INPUT
SDI AUDIO Any SDI Embedded Digital Audio
COLOR BARS
TEST GENERATOR Built-In Broadcast HD Test Pattern Generator for plug 'n play installations and input signal lost detection
VIDEO ENCODER
Encoder Video Profile Two encoder engines from the same SDI Input selectable as:
- MPEG5 HEVC H.265 any profile - any level
- MPEG4 H.264 base profile / main profile / high profile - any level
-SDI input adjusting scaling, frame rate, logos, etc per each encoder
- where / if not needed, the secondary stream can be turned off.
Encoding Mode Interlace & Progressive encoding support
Video Processing Extensive video pre-processing help get the best picture whatever the source
Processors Per ChannelBroadcast Encoder Chipsets for maximum Quality
Video Processing Extensive video pre-processing including Noise reduction and Resolution changing
Encoding In-Out Latency <50 milliseconds SDI input to IP out in udp mode - Excluded player buffering
Traffic Shaping Selectable Triple Motion Estimation Look-Ahead Statistical Variable Bitrate or Constant Bitrate
Video Encoding Data Rates VBR Variable, 64Kbps 15Mbps per channel
Color Profile 4:2:0 Broadcast Grade Sampling
GOP Size 15
PCR Precision Broadcast-Grade Accuracy
AUDIO ENCODER
Channels 1 x stereo audio channel processing
Audio Formats - Dolby Digital® (AC-3) - Encoding rates from 56 kbps to 640 kbps
- MPEG-1 Layer II Audio Encoding Standard Encoding rates from 32 kbps to 384 kbps
- AAC Advanced Audio Coding
- MP3 Audio Encoding
Audio Video Sync Automatic Audio Video frame by frame synchronization with Time Stamp
TRANSPORT STREAM
PIDs Numbering Full Control to match any specific Network Provider or application Needs
Descriptors Full Control to set Programs Names / Network / Provider
CONTROL SET UP
NETWORK In-Band Ip web remote control via secure login
