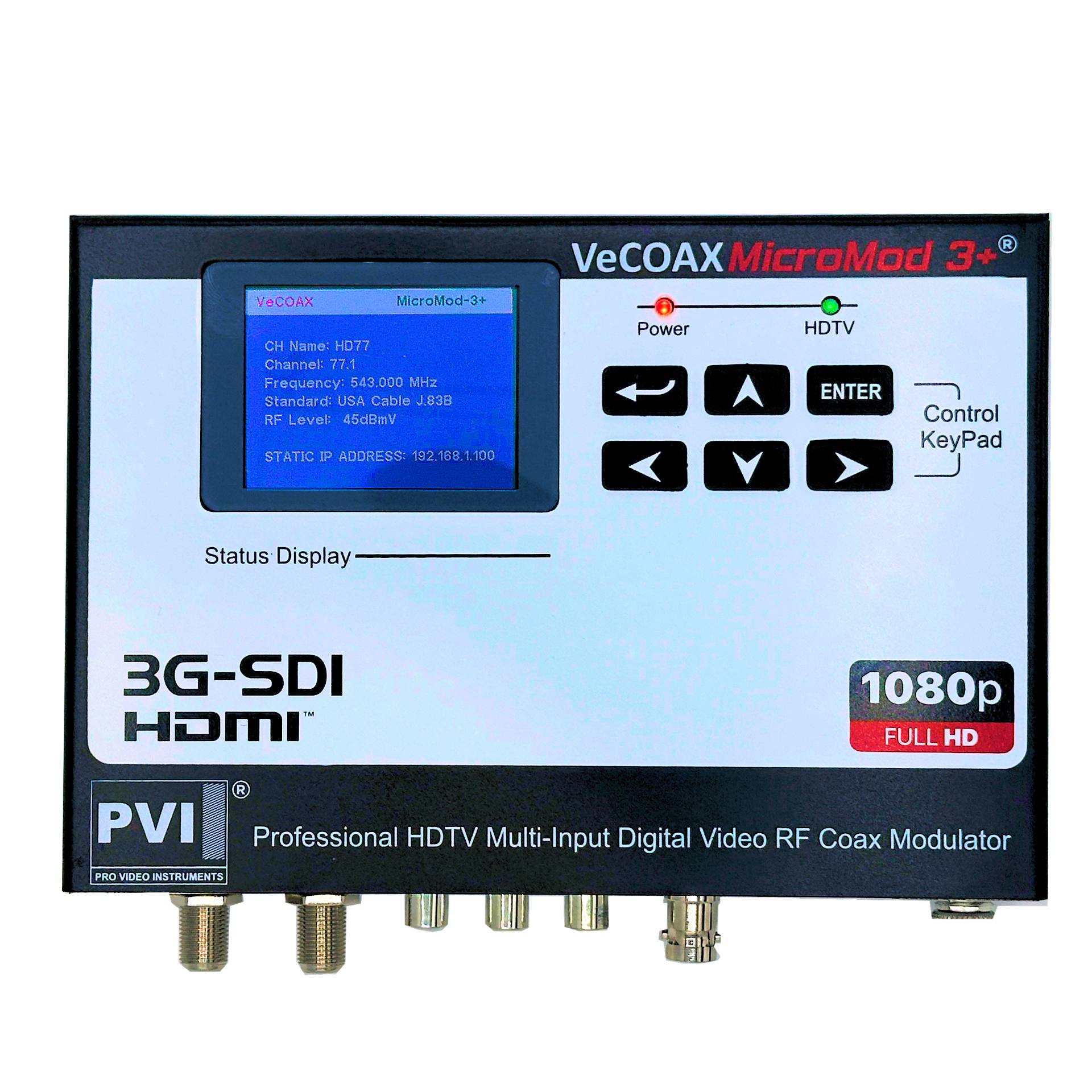

SDI RF Modulator | VeCOAX Micromod 3 SDI

SDI RF Modulator | VeCOAX Micromod 3 SDI

In Stock, Get It by Tomorrow
Free Ground Shipping.

This Model Key Features:

•Distribute 1 Channel of Any HD Video to unlimited TVs over the existing TV coax cables
-FULL HD Quality up to 1080P & Dolby Digital Audio

•No Need for new cables nor adapters behind TVs - Receives on TVs as new HDTV Channels

•Works with Any SDI / HDMI / AV - CC Closed Caption, or SD Composite AV Source - Limitless & Universal

•Compatible to Any HD Television can also mix with existing channels ( any standard )

•Reliable - Affordable - Free Unlimited Tech Support - 5 Year warranty - The Best Quality & Price!

Application examples of How To Use This Model:


3G HD SDI to COAX HD RF Modulator To Channels

Real Time Live Distribution, 3G-SDI HDSDI AV HDMI Licensed, 480i / 720p / 1080i / 1080p Full HD Encoder Modulator, Dolby AC3 Audio Encoding

QAM,  ATSC, DVB-T,  ISDB-T, DVB-C, DMBT Modulation Selectable From Color Display, One-Click setup



The VeCOAX MICROMOD-3-SDI is a single channel 3G HD SDI plus HDMI plus AV selectable input to coax digital TV channels hdtv rf modulator to convert any Full HD Video signal from any HDMI / SDI / AV video source into a Full HD HDTV digital television channel you can inject over the existing tv coaxial distribution box and distribute to all television sets in every room at any distance, with real time perfect quality.
The VeCOAX MICROMOD-3-SDI comes with the most ultimate sets of features today on the market so you can connect any type of SD/HD/3G SDI with embedded audio, or audio from the L/R analog input, as well any HDMI Video Source, or CVBS Composite ones, and closed captioning, and set the output to your TVs deciding your channel name and number to list, any air or cable mode, all in few clicks from the easy to use front panel color display and keyboard or remote control from your PC.
Installation is very simple, in minutes, by setting the channel, the name, with no limits, as you need.
Multiple units can also be installed together to expand the number of distributed HDMI channels, by setting a different channel number on each VeCOAX MICROMOD-3-SDI, so our software will automatically set all the parameters for you.
Built with the latest Digital Television Technologies for totally noise-less - quiet and non-stop 24/7 operation, the VeCOAX MICROMOD-3-SDI maintenance is covered by 5 Year Warranty.
With the VeCOAX MICROMOD-3-SDI you have the benefits of a perfect, reliable, and simple to install SDI / HDMI / AV universal and selectable video distribution solution to an unlimited number of Television sets, without requiring new cables, special wiring, nor multiple parts behind each TV, because the VeCOAX MICROMOD-3-SDI can drive your TVs directly and in real time without any additional part to install.
Automation Systems can also be implemented by changing the channel on the wanted TV, as well the source control, and the VeCOAX will deliver your signals as you need.
Our units are HDMI licensed and compatible to any HDMI video source.
The VeCOAX MICROMOD-3-SDI is the ideal and cost effective solution to distribute any SDI / HDMI / AV video signal up to 1080p 60 over COAX to all your TVs, delivering perfect video & sound quality for the best price on the market.


Features & Benefits
  • LIVE HDMI Video distribution over the existing Coaxial Cabling to an unlimited number of Televisions
  • ADVANCED EDID control to manage any video source from our color display and wanted formats
  • Built-In COLOR BARS HD reference signal for installation and in case of input video loss
  • SD/HD/3G SDI with EMBEDDED AUDIO or audio from the L/R RCA analog input for separated feed
  • HD digital-perfect quality to television at any distance up to 1080p 60 Full HD
  • Real Time Super-Fast processing for Live Real Time Applications
  • Licensed HDMI inputs - works with any HDMI Video Source
  • Add Multiple units for more channels with one-click setup recalling a different channel number from the display
  • Dolby Digital sound for best audio experience
  • CC Closed Caption via SDI 608/708 embedded, or CVBS Inputs or In-HDMI cc video
  • ALL-MODULATION Modes are built-in and selectable from the display as:
    No need to change software - all are included and selectable as you need at any time.
  • Simple Control via Color Display - one-click presets to recall mode and ID in case of  multiple machines installations
  • Also control via computer remotely and Free-Included Remote Management Software
  • Real Time Processing - Works also for any Live application
  • Selectable Audio format per channel as  AC3 dolby / Mpeg1L2 / AAC
  • Broadcast Video Encoding processors for the ultimate video quality
  • PSIP & VCT full control to edit Programs Names, PIDs, Channel Numbers, Descriptors in ATSC/QAM USA applications
  • PSI & LCN full control to edit Programs Names, PIDs, Channel Numbers, Descriptors in DVB applications
  • Built-In output amplifier up to 45db millivolts to drive directly unlimited TVs up to 1500Ft+ away
  • Excellent MER exceeds 43db over Rohde Schwarz ETL industry reference instrument
  • Full Digital Multi-RF Synthesizer with Zero harmonics & spurious, 55db Shoulders, can work adjacent to other TV channels
  • 5 Year advanced warranty - Offers advanced replacements of modules to receive and replace on-site - zero downtime*
  • Simple Installation, For Everyone, Anywhere, In Minutes, For the Best Price on the Market

*All Specifications Subject to Change Without Notice



*All Specifications Subject to Change Without Notice

SKU 0649070909045
Power 100-240 VAC 50/60 Hz, 10W max. 5W Typical IEC 60320-C14
Cooling Fan-Less - Noise-Less
Temperature/Humidity +32 F° to +115 F° (0 C° to +46 C°) / 10% to 80% non-condensing
Vibration NSTA 1A in carton
MTBF 55,000 hours
Compliance FCC Class A, IEC60065, EN61000, CE, RoHS, RCM C-Tick
Enclosure Type EMI Shielded Metal
Mounting Desktop / Wall / OR OPTIONAL RACK BARS - 10 modules per bars kit
Enclosure Dimensions 1.5 in. (H) x 5.9 in x 2.5 in. (D)
System Weight 2 lbs. (1 kg)
Carton Dimensions (Individual) 4 in. (H) 5 in. W 9 in (D);
Shipping Weight 6.6 lbs. (3 kg)
Warranty 5 years
Reliability 24/7 Operation
System Maintenance Stand-Alone unit allows multi channel operation using multiple units and on-site replacement without impacting other channels
Local Control Easy-to-use front panel control with intuitive Color Display - No need to connect a computer to install
Remote Control Via PC and provided Management Software
TV Standards One-Click switch between USA QAM CABLE / USA ATSC AIR / DVBT eu au nz co / ISDBTb / DVBC / DTMB / J83A J83B J83C
SDI Input Connects to any SD/HD/3G SDI up to FULL HD 1080P 60 - one stereo pair embedded
HDMI Input Licensed HDMI inputs compatible to any HDMI Video source
AV Input Connect to any analog CVBS Composite Yellow Video Cable and L/R white-red audio canbles from any source
Coaxial Output Built-In Amplifier up to +45dB millivolts to drive unlimited TVs directly up to 1500Ft away without need to re-amplify
Multi-Units Can install multiple Units on the same coax cable to add / operate multiple channels at the same time - Rapid Installation
HDMI Licensed HDMI input - compatible to any HDMI Video Source up to 1080p resolution
HDMI Version Compatible to any HDMI source including HDMI 2.0 ( Max input resolutionis 1080p 60 )
EDID Control Advanced EDID control compatible with any HDMI Video source
SDI Input SD / HD / 3G SDI embedded compatible to any SDI Video Source up to 1080p resolution
AUTO Detection Auto frame-rate input switching
CC Closed Caption EIA/CEA-608 - 708 captions over SDI and 608 over composite video input
Video Resolutions 480i / 480p / 576i / 576p / 720p / 1080i / 1080p ( AUTO & EDID Controllable )
Frames Ratio 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 FPS
Aspect Ratios 16:9 / 4:3 / Film mode detection (3:2 pull-down)
HDMI AUDIO Any HDMI Embedded Digital Audio
SDI AUDIO 1 Pair - stereo - group and pair is selectable
L/R AUDIO Unbalanced Stereo Audio 700mvpp 10kohm
TEST GENERATOR Built-In Broadcast HD Monoscope Test Pattern Generator for plug 'n play installations and input signal lost detection
Encoder Video Profile MPEG2 HD: ISO13818-2 Main Profile @ Main Level (SD)
MPEG2 HD: ISO13818-2 Main Profile @ High Level (Full HD up to 1080p ENCODING)
Encoding Mode Interlace & Progressive encoding support
Video Processing Extensive video pre-processing help get the best picture whatever the source
Processors Per Channel One Dedicated Broadcast Encoder Chipset per each channel (8 total) for maximum Quality
Video Processing Extensive video pre-processing including Noise reduction and Resolution changing
Encoding In-Out Latency 20 milliseconds HDMI input to RF output in Low Latency mode - LIVE Application Mode
Traffic Shaping Triple Motion Estimation Look-Ahead Statistical Variable Bitrate
Video Encoding Data Rates VBR Variable, 10 Mbs - 30 Mbs per channel depending from the selected TV Standard
Color Profile 4:2:0 Broadcast Grade Sampling
GOP Size 15
PCR Precision Broadcast-Grade Accuracy
Channels 1 x stereo audio channel processing
Audio Formats - Dolby Digital® (AC-3) - Encoding rates from 56 kbps to 640 kbps
- MPEG-1 Layer II Audio Encoding Standard Encoding rates from 32 kbps to 384 kbps
- AAC Advanced Audio Coding
Audio Video Sync Automatic Audio Video frame by frame synchronization with Time Stamp
PIDs Numbering Full Control to match any specific cable provider or application Needs
Descriptors Full Control to set Programs Names / Network / Provider
VCT Numbers Full Control to set Major / Minor Program number per each channel
LCN Numbers Full Control to set the Program number per each channel
Program Information Automatic PSI ( DVB ) and PSIP ( ATSC QAM ) for the selected TV mode
Modulator Type Broadcast DDS Direct Digital Synthesizer - Direct to target frequency out
Carriers Span Full Spectrum Adjacent and/or Non-Adjacent
Frequency Range Frequency Agile Full-Spectrum 30 Mhz to 960 Mhz @ 1 KHz Steps
Channels Any Channel Number is supported - Any TV Standard
Modulation Standards Built-In, Selectable from Display:
- USA QAM CABLE J.83B - any 256 & 64 modes
- Brazilian ISDBTb Terrestrial
- DVB-T eu au nz co Terrestrial 6 / 7 / 8 Mhz BW World Wide
- DVB-C Cable
- DTMB Terrestrial
All standards are built-in and changeable in one click from the display
No need to load any software or for a different model
Our unit can operate World-Wide with any existing TV set
Output Power +45 dBmV typical
Output Level Adjust +15 to +45 dBmV digitally fine-adjustable per each carrier/channel
MER Better than >43db Measured on Rohde Schwartz ETL Test Set
Per Carrier Shoulders Better than >55dB Measured on Rohde Schwartz ETL Test Set
Front Panel Color Display Easy To Use full control via Color Display & Keyboard
USB & NETWORK - Plug 'n Play Native USB computer control - no need to configure any ip on the computer at installation
- IP Network control accessory available to control one or multiple units from anywhere over IP
Integrations Compatible with any Automation, set channels numbers and names, auto-detects formats & resolutions changes on the fly.
Then Usually the Automation controls the sources and the destination TVs to select the channel to watch as there is no need to change the modulator settings at any time. Easy To Install, Simple to Operate, Reliable, Cost-Effective, Real-Time with no maintenance required.
