INFINIUM RF COAX OUT FOR 4K TVs

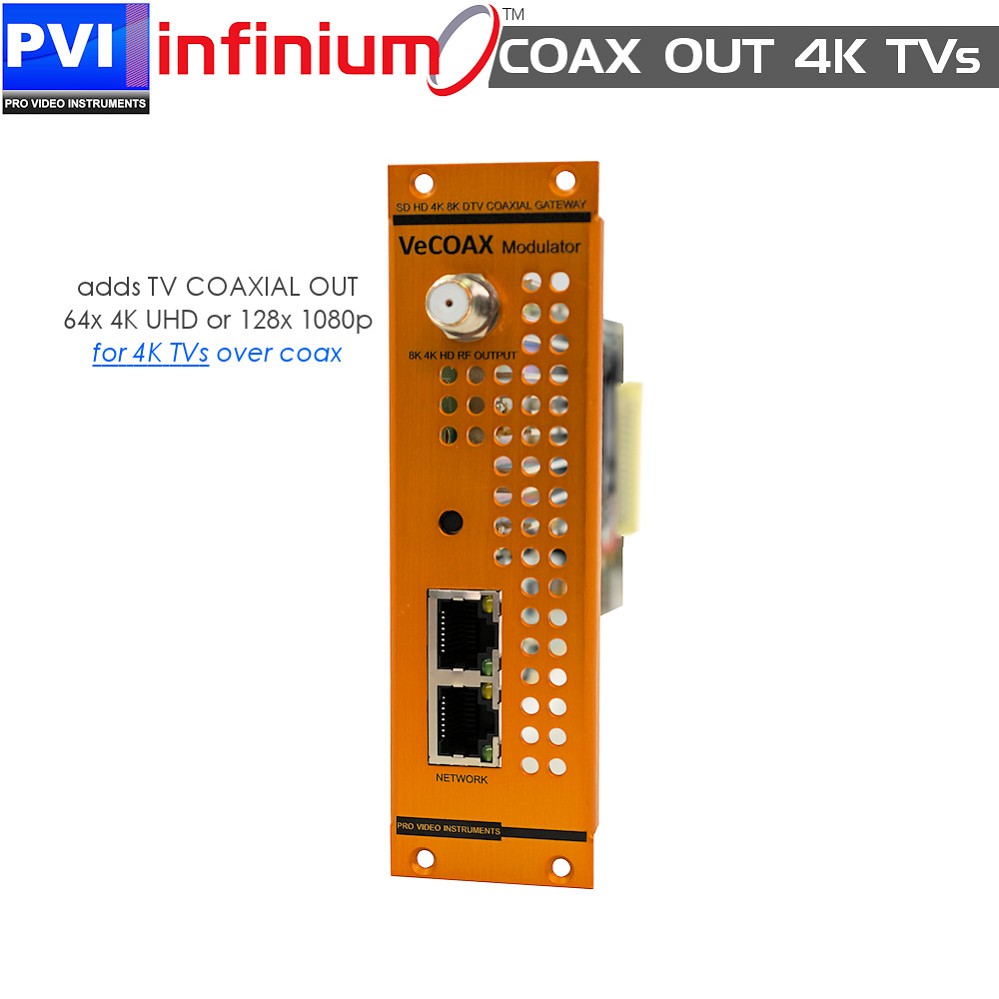

INFINIUM 4K Over Coax Out RF Modulator Card


INF-MOD-4K-IP-16QAM

In Stock
$1,495.00
Free Ground Shipping.
0610452415019

This Model Key Features:

⦿ Add 4K over COAX QAM capabilities to the INFINIUM Chassis using our Award Winning VeCOAX Modulator Technology

⦿ Works with 4K QAM CABLE TVs ( results may vary on older 1080P HD only TVs not compatible with H.264 or HEVC video modes)

⦿ Convert up to 64x 4K Encoder Channels or 128 HD encoder channels to equivalent TV coax channels

⦿ Output up to 16 QAM agile adjacent/non adjacent RF carriers 30-1000Mhz ⦿ adjustable RF Level +10 to +59 dBmV

⦿ Delivers 4K 1080p 720 SD Resolutions over existing TV coaxial cables ⦿ Set Channels Names & Numbers

Want a FREE QUOTE right now?
Add to cart & Proceed to Checkout
Complete selecting "FREE QUOTE" on last page

Application examples of How To Use This Model:





PVI Infinium changes the game of video distribution handling native Full 4K signals distribution to any possible existing playback device over any local or internet networks supporting any modern protocol such as SRT ultra low delay or RTMP or HLS http udp onvif rtp rtsp with also multi rate or 4 different compression formats out per each input to reach anything out there.
Where needed the PVI INFINIUM can be added with the 4K COAXIAL OUTPUT module to drive an unlimited number of 4K Televisions over the existing coaxial cables without requiring to change the cable network as the signal is totally compatible, delivering full 4K TV channels over coax.


PVI INFINIUM 4K RF Modulator encodes HDMI 2.0b from any 4K video source to 4K tv channels over coax for 4k video over coax distribution to TVs

Add 4K Over Coax

PVI INFINIUM upgrades any Existing TV Coax Distribution To 4K 60 HDR+

Where needed the PVI INFINIUM chassis can add a specific add-on 4K Modulator module to deliver the HD 4K Channels also over coax up to Full 4K @60 hdr+ to an unlimited number of 4K TVs without the need to change the actual TV Coax Cables installation including amplifiers or splitters. All stays the same, simply add the PVI INFINIUM with the 4K RF Modulator module, based on our AWARD WINNING VeCOAX Technology. With PVI INFINIUM IP Streaming & Coaxial networks, HD 4K works all at the same time, with one single modular expandable unit. No Limits.


PVI INFINIUM Video Distribution HD Encoder Cards:

Technical Specifications


_4K RF COAX tv Modulator Module Features:


RF Modulation Output


Standard is changeable on-site via software download

QAM J83B American Cable Television

Standard: EN300 429/ITU-T J.83A/B QAM Modulator
Number Of QAM Carriers: 16 ON/OFF selectable
Carriers Operation: Adjacent & Non-Adjacent
Max Carriers Span Window: within 192 Mhz
One Programs Multiplexer Per Carrier: Yes
Frequency Range: 50-960 MHz @ 1 Khz Steps
Per Carrier Bandwidth: 6-MHz
MER: =44dB
RF Output Level: Adjustable -20 to +10dbm (+50 dBmV Millivolts @ 0.1db steps)
RF TEST Output Level: -20dB
Constellation: 64/256 QAM
MAX Bitrate Per Carrier: 36 Megabit/s
Can Change to this standard on site: Yes - software download

ATSC American Off-Air Television

Standard: ATSC A/53 Off-Air 8-VSB Modulator
Number Of ATSC Carriers: 8 ON/OFF selectable
Carriers Operation: Adjacent & Non-Adjacent
Max Carriers Span Window: within 192 Mhz
One Programs Multiplexer Per Carrier: Yes
Frequency Range: 50-960 MHz @ 1 Khz Steps
Per Carrier Bandwidth: 6-MHz
MER: =44dB
RF Output Level: Adjustable -20 to +10dbm (+50 dBmV Millivolts @ 0.1db steps)
RF TEST Output Level: -20dB
Constellation: 8-VSB
FEC: RS(208 188)+Trellis
ACL: -55 dBc
MAX Bitrate Per Carrier: 19.3 Megabit/s
Can Change to this standard on site: Yes - software download

ISDBT Latin-American Off-Air Television

Standard: ARIB STD-B31 ISDBT Modulator
Number Of ISDBT Carriers: 6 ON/OFF selectable
Carriers Operation: Adjacent & Non-Adjacent
Max Carriers Span Window: within 192 Mhz
One Programs Multiplexer Per Carrier: Yes
Frequency Range: 50-960 MHz @ 1 Khz Steps
Per Carrier Bandwidth: 6-MHz
MER: =44dB
RF Output Level: Adjustable -20 to +10dbm (+50 dBmV Millivolts @ 0.1db steps)
RF TEST Output Level: -20dB
Constellation: QPSK, 16QAM, 64QAM
Guard Interval: 1/4, 1/8, 1/16, 1/32
Transmission Mode: 2K, 4K, 8K
Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
MAX Bitrate Per Carrier: 26 Megabit/s
Can Change to this standard on site: Yes - software download

DVB-T World-Standard Off-Air Television

Standard: EN300744 DVB-T Modulator
Number Of DVBT Carriers: 8 ON/OFF selectable
Carriers Operation: Adjacent & Non-Adjacent
Max Carriers Span Window: within 192 Mhz
One Programs Multiplexer Per Carrier: Yes
Frequency Range: 50-960 MHz @ 1 Khz Steps
Per Carrier Bandwidth: Selectable 6-7-8 MHz
MER: =44dB
RF Output Level: Adjustable -20 to +10dbm (+50 dBmV Millivolts @ 0.1db steps)
RF TEST Output Level: -20dB
Constellation: QPSK, 16QAM, 64QAM
Guard Interval: 1/4, 1/8, 1/16, 1/32
FFT Transmission Mode: 2K, 4K, 8K
FEC Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
MAX Bitrate Per Carrier: 31 Megabit/s
Can Change to this standard on site: Yes - software download

DVB-C J83A European Cable

Standard: EN300 429/ITU-T J.83A DVB-C Modulator
Number Of DVB-C Carriers: 16 ON/OFF selectable
Carriers Operation: Adjacent & Non-Adjacent
Max Carriers Span Window: within 192 Mhz
One Programs Multiplexer Per Carrier: Yes
Frequency Range: 50-960 MHz @ 1 Khz Steps
Per Carrier Bandwidth: 8-MHz
MER: =44dB
RF Output Level: Adjustable -20 to +10dbm (+50 dBmV Millivolts @ 0.1db steps)
RF TEST Output Level: -20dB
Constellation: 16/32/64/128/256 QAM
Symbol Rate: 5.0Msps~7.0Msps, 1ksps steps
MAX Bitrate Per Carrier: 56 Megabit/s
Can Change to this standard on site: Yes - software download
