Application examples of How To Use This Model:
PVI Infinium changes the game of video distribution handling native Full 4K signals distribution to any possible existing playback device over any local or internet networks supporting any modern protocol such as SRT ultra low delay or RTMP or HLS http udp onvif rtp rtsp with also multi rate or 4 different compression formats out per each input to reach anything out there.
Where needed the PVI INFINIUM can be added with the 4K COAXIAL OUTPUT module to drive an unlimited number of 4K Televisions over the existing coaxial cables without requiring to change the cable network as the signal is totally compatible, delivering full 4K TV channels over coax.
PVI INFINIUM Video Distribution HD Encoder Cards:
Technical Specifications
_HD HDMI Encoder Features:
IPTV Streaming Output
Streaming Protocols
? SRT / RTMP / RTMPS / HLS / HTTP / RTSP / RTP / FLV / ONVIF / UDP/RTP Unicast-Multicast
Multiple Simultaneous Formats
? Can output up to 4 different Compressions at the same time choice of HEVC or H264 or Mjpeg
? Each stream can have a different streaming protocol choice of SRT / RTMP / RTMPS / HLS / HTTP / RTSP / RTP / FLV / ONVIF / UDP/RTP Unicast-Multicast
Error Correction Protocols
? SRT Secure Reliable Transport
Super Ultra Low Latency Protocols
? SRT Fast as 50 milliseconds plus network TTL
SRT Compatible Decoders
? VLC VideoLAN software
? VLC VideoLAN based players
? Any SRT Standard player device
? Our PVI VEPLAYER Decoder Click here to explore
UNICAST Streaming
? Built-In hardware secure server
? 100 Megabit Streaming Port
? Up to 100 Megabit Connections
? 200 Connected Users @ 500 Kilobit each ( or more or less depending from the encoding bitrate up to the maximum bandwidth of the encoder port of 100 megabit/s.
? NOTE: for unlimited unicast bandwidth & audience simply send one stream to your youtube channel account to use youtube platform as a global broadcast repeater with unlimited unicast bandwidth or use any other similar internet server platform
MULTICAST Streaming
? Unlimited Video Player Devices / Unlimited Audience in multicast ( hundreds of thousands in Multicast - no limits)
? Built-In hardware secure server
? 100 Megabit Port
? Works over any LAYER2 and Higher Network Switch capable to handle multicast Streaming (see switch specification if supports multicast hd or 4k video streaming)
? IGMPv1/v2/v3 Compatible for optimal multicast streaming to unlimited devices over the same multicast capable network with fully-automated routing and network badnwidth optimization
Direct Streaming To Internet
? Streams directly to any device via the internet router
? Configure the router to publish the ip service of the module and play from anywhere over internet
Streaming To Youtube
? Send One stream to Youtube for Youtube-Live application
? Serve Unlimited audience via YOUTUBE Distribution
? Can send the same streams to multiple social platform for multiple distribution at once
Streaming To AWS
? Send One stream to AWS for AWS Live restreaming application
? Serve Unlimited audience via AWS Distribution
? Can send the same streams to multiple social platform for multiple distribution at once
Streaming To FaceBook
? Send One stream to FaceBook for FaceBook-Live application
? Serve Unlimited audience via FaceBook Distribution
? Can send the same streams to multiple social platform for multiple distribution at once
Streaming To Any Server
? Send One stream to any social media or server platform for Live restreaming application
? Our formats are compatible to any system
? Can send the same streams to multiple platforms for multiple distribution at once
Auto-Reconnect
? In case of router disconnection or Link disconnection to the player or to a server, the encoder will try to reconnect automatically as soon as the network is connection is restored with no manual intervention required
Custom Settings
? Output stream format is standard and compatible to any device or platform
? Specific applications may require packets customization, possible via the advanced control menu
? Please contact our tech support for any specific need, or check the instruction manual for the related guidance
Connections
HDMI Video Input
? 1x pro HDMI type A connector Gold Plated contacts humidity & dust resistant.
? Up To HDMI1.4.
? Supports up to 10Gbps 1080p 4:4:4.
CC Closed Caption
? Standard HDMI-Embedded closed caption is supported.
Audio Inputs
? Audio input is selectable between HDMI Standard Embedded or Separated L/R Stereo unbalanced analog input via 3.5mm stereo jack.
? HDMI Embedded digital input
? 3.5 mm analog stereo audio
• 1 Vrms (0 dBV)
• 14.3 kO (gain = 0 dB)
• -60 dB to +6 dB (default is 0 dB)
Network Connection
? RJ45 Electrical connection compatible to any CAT5 CAT6 CAT7 CAT8 Ethernet cable
? 100 Megabit Streaming with Auto Negotiation 100 base T
? Layer2 network switch with video streaming capabilities is recommended
? Layer3 or Higher switches are compatible
? Can also be connected directly to an internet router for direct-to-internet streaming
Hot-Swappable Bus Connector
? Professional Multi-Layer Gold-Plated dust - humidity - vibration proof data buss connector for Safe Hot-Swappable operation
? Card can be installed or removed at any time to the Main Chassis without the need to turn off the whole system nor stop any other card process. 100% Hot Swappable
Indicators
PWR LED
? [ON] when the card has completely booted and it is Fully Operational.
? [Flashing] Red or OFF when card requires maintenance.
ONAIR
? [ON] when the card is broadcasting at least one channel / one stream.
? [OFF] when the card is READY In Stand By.
Standards
HD Video Standards
? 720p@50, [email protected], 720p@60 1080i@50, [email protected], 1080i@60, [email protected], 1080p@24, 1080p@25, [email protected], 1080p@30, 1080p@50, [email protected], 1080p@60, [email protected], 1080P@sF24, 1080P@sF25, [email protected], 1080P@sF30.
FPS from 5 to 144 accepted
? Four SCALER processors can resize the original input format to the wanted target resolution independent per each or the 4 integrated encoder engines to create up to 4 different streaming output formats. As example create one streaming output same as the original input in FULL HD 1080p plus 3 sub streams eventually downscaled to fit the destination networks or servers or devices or mobile. Each of the four output streams can also be compressed with a differnet format choice of HEVC or H.264 or Mjpg or JPG.
SD Video Standards
? 720, 704, 640, 576, 544, 528, 480, 352, 320, 160, @i50 PAL
? 720, 704, 640, 576, 544, 528, 480, 352, 320, 160, @i59.94 NTSC
? FPS from 5 to 144 accepted
? Four SCALER processors can resize the original input format to the wanted target resolution independent per each or the 4 integrated encoder engines to create up to 4 different streaming output formats. As example create one streaming output same as the original input plus 3 sub streams eventually downscaled to fit the destination networks or servers or devices or mobile. Each of the four output streams can also be compressed with a differnet format choice of HEVC or H.264 or Mjpg or JPG.
Custom Video Resolution Scaler
? manual horizontal scaler pixels: 1920, 1440, 1280, 960, 720, 704, 640, 544, 480, 352, 320, 160.
? manual vertical scaler pixels: 1080, 720, 576, 480, 288, 240, 180, 120.
FPS from 5 to 144 accepted
? SCALER processing can resize the HD input to the wanted custom target resolution to fit any bandwidth or destination pool of devices.
CC & TXT Compatibility
? HDMI CC / TXT Embedded Detection
? Compressed Stream will pass the CC OR TXT as from the HDMI input without visual artifacts or distorsion
Audio Sampling
? Television standard sample rate of 44.1kHZ / 48kHz @ 16 / 20 / 24 bit auto-link.
Color Space Capture
? BT.2020
? RGB and YUV 8- and 10-bit support
? Color space conversion support
Chroma Sub-Sampling
? Any HD up to 4:4:4 (10Bit)
Auto Multi-Rate Support
? Compatible to any video switcher
? Compatible to any video matrix
? Ultra-Fast Auto-Lock Auto detection on format change for any of HD, SD TV standards
? Ultra-Fast Auto-Lock Auto detection on format change for any NON-TV standards up to 1080p@60fps
Video Compression Formats
Simultaneous CODECS
? Can compress the same video input to four different formats and resolutions for multi-bitrate / multi-target / multi-network applications
? Each of the 4 compression engines can set the target resolution and target frame rate independetly
? Each of the 4 compression engines can set the compression parameters independetly
Video Profiles
? H.264/AVC High / Main / Baseline Profile
? MJPEG Baseline
GOP Group Of Picture
? Manual GOP mode selectable as short and long GOP, IP, IBP, IBBP and IBBBP
? Adaptive GOP structures of IP, IBP, IBBP and IBBBP where the encoder chooses whether to use B frames according to the video content
FPS target Frames per Second
? Auto same as input
? manual scaled to: 60, 59.94, 50, 30, 29.97, 25, 24, 23.97, 15, 12, 10, 5.
TXT CC Closed Captioning
? Compression passes-through the HDMI-Embeded TXT or CC without introducing artifacts nor visual distorsion
VBR/CBR Encoding mode
? Encoding is selectable in CBR constant bitrate, VBR variable bitrate with Min/Max Stat Mux parameters.
Super Ultra-Low Latency
SRT MODE protocol delivers the encoded streams as fast as 50 milliseconds plus Network TTL.
Audio Compression
Simultaneous CODECS
? Can compress the same Audio input to four different formats for multi-bitrate / multi-target / multi-network applications
? Each of the 4 compression engines can set the target format independetly
? Each of the 4 compression engines can set the compression parameters independetly
AC3 Dolby Stereo Encoding
? Stereo 2.0
? Sampling rate 48Khz
? Bit-rate 32-320bit
MPEG1 LAYERII Encoding
? Stereo 2.0 32-384kbit/s
? Mono 1.0 centre from left 32-192kbit/s
? Mono 1.0 centre from right 32-192kbit/s
? Mono 1.0 (L+R/2) 32-192kbit/s
? 1+1 Dual Mono 64-384kbit/s
? Joint Stereo 2.0 32-384kbit/s
MPEG2-AAC Encoding
? Stereo 2.0
? Sampling rate 48Khz
? Bit-rate 32-320bit
AAC-LC Encoding
? Stereo 2.0
? Sampling rate 48Khz
? Bit-rate 32-320bit
AAC-HE
? Stereo 2.0 32-384kbit/s
? Sampling rate 48Khz
? Bit-rate 32-320bit
MP3
? Stereo 2.0 32-384kbit/s
? Sampling rate 48Khz
? Bit-rate 32-320bit
G.701
? Stereo 2.0
Watermark Insertion
Per Stream Watermarking
? 4x Watermark inserters to add the wanted watermarking to each of the 4 simultaneous compression engines
? Each watermark is independent and can be different as well positioned and displayed as wanted per each of the 4 encoding engines
LOGO Generators
Per Stream Logo Inserters
? Up to 3 Logo can be inserted per each of the 4 compression engines, so each of the 4 encoder versions comes with the wanted logos & graphics sizes and positions
? Add Logos & Graphic by loading alpha-channel pictures via the user interface or API remote controls
PVI INFINIUM Application Examples:
4K Video Distribution Solution to distribute Anything - Anywhere - Any Format
Works on Smart TVs
Add the PVI INFINIUM channels IP addresses to any Smart-TV IPTV APP and watch.
Works on Mobile & PC
Stream over HD 4K MultiMedia Capable WiFi and watch on any video player APP.
Works on IPTV boxes
Add the PVI INFINIUM channels IP addresses to any IP set-top box M3U8 playlist and watch.
Works on Coaxial TVs
No need for an extra adapter, receive directly as HD 4K digital channel via the antenna cable.
PVI INFINIUM 4K Video Distribution solution Industry Recognitions:
INFINIUM is Award Winning because delivers what everybody needs
NAB 2020 best of show TVT
best of show Infocomm 2020
NAB 2020 best of show TVT
|
PVI INFINIUM 4K Video Distribution solution installation examples:
How to do HD 4K video distribution in a new simple efficient way anywhere
On-Line LIVE STREAMING
PVI INFINIUM Distribute 4K or HD Sources over internet via its built-in multi-gigabit unicast server also supporting the newest SRT ultra low latency protocol fast as 50 millisecond plus the internet TTL latency. The built-in newest advanced H.264 HEVC formats save up to four times the internet bandwidth to reach 400% more audience when used in direct streaming or unlimited when streaming to a video platform such as Youtube. Transmission cab be open public or secured with a string password for subscribers or accredited audience.
Internet TV Broadcasting
PVI INFINIUM is the perfect solution to stream to Smart TVs direct of via any digital television platform such as Youtube or AWS or similar to distribute TV channels, Info Channels, News, Corporate Channels, or any other service to an unlimited audience. Direct streaming simply requires an internet connection as the server is already built-in delivering up to 800 megabit per channel, so as example a channel encoded @ 1 megabit can be watched directly by 800 people at once without requiring any third party service. The same streams can be sent at the same time to online platforms ( youtube live or similar ) to reach millions of people LIVE, in HD and 4K, over any device.
OnLine HomeSchooling
PVI INFINIUM streams 4K or HD school lessons to students at their homes, direct to their computers or tablets or phones or on the home SmartTV, simply clicking an internet link which can be also password protected. Each Teacher can have its own streaming channel where students can log-in to watch the lessons live or pre-recorded on an SD Memory playing on a simple media player box connected to the INFINIUM channel. The PVI INFINIUM streams can also be integrated into specific WEB Pages of the Campus website, allowing LIVE interactions like in a real live classroom, safe, secure, all owned by the school without using third party services.
Work Form Home
PVI INFINIUM is designed with the newest SRT Super Low Delay streaming technology making it possible to create corporate Private Live Streaming channels fast as 50 milliseconds plus the internet TTL speed. Our multi-user simultaneous Streaming can be direct to internet to hundreds of devices up to the local internet connection capacity, or sent to any streaming platform for unlimited audience as needed. The PVI Infinium Streams can also be integrated to any web portal for any interactive application. The PVI INFINIUM technology opens new possibilities to interconnect people anywhere with superfast auto-error-corrected performances in a compact simple to install HD 4K Video distribution system secure and owned by the company.
|
Home Video Distribution
PVI INFINIUM Distribute 4K or HD HDMI Sources across the House over the actual TV Wires up to full 4K to all Regular 4K TVs, Luxury Homes Multi TV & Video Wall Distribution, HDMI Video Distribution To Multiple TVs, Condominiums TV Distribution, Community TV Systems, Village TV systems, Info Channels, Security & Monitoring
Housing Video Distribution
PVI INFINIUM Distribute 4K or HD TV in Apartment buildings, Condominiums, Residences, Communities, Student housing, Senior housing, Military barracks, Work camps, and oil rigs
Education Video Distribution
PVI INFINIUM Distribute 4K or HD TV in Campuses, Schools, Arts Centers, Libraries, Museums, Digital Signage, Communication Channels, Local Emergency, Announcements, Monitoring, Broadcast Presentations & Meetings

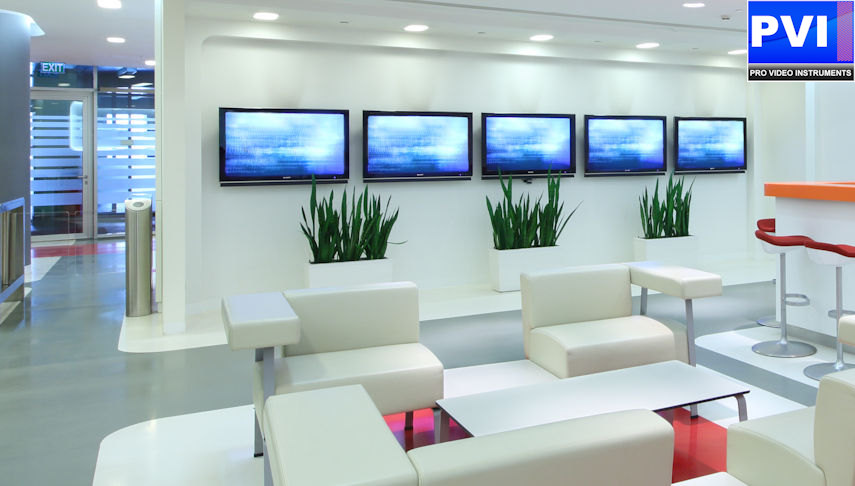

Corporate Video Distribution
PVI INFINIUM Distribute 4K or HD Video in companies for Broadcast Presentations & Events, Corporate Digital signage, Executive Boardrooms, Training Facilities, Collaboration & Huddle rooms, Meeting presentations, local emergency, control content by zones, VideoWalls over Coax & IP
|
Hospitality Video Distribution
PVI INFINIUM Distribute 4K or HD TV in Hotels and Resorts, Conference Centers, Hospitals, Info Channels, Common Areas, Lobbies, Lounges, Locker rooms, Waiting Rooms, Gyms, Executive Offices, Info Points, Luxury Suites, Film Rooms, distribution of Internet / Off-Air / satellite / cable channels
Retail Video Distribution
PVI INFINIUM Distribute 4K or HD TV in Restaurants and Sports Bars, Casinos, Betting Shops, Sports Books, Sports Stadiums and Arenas, Fitness Clubs large displays & exercise equipment, Electronics Retailing, HD/4K Video Walls over coax and IP, Digital signage, Menu boards, Promotions, Advertising, Window Screens, Multiple Distributed VideoWalls, Training, Security command & control centers, Event Broadcasting, Info Channels, Distribute Video and Digital Signage, security and control applications
Broadcast Video Distribution
PVI INFINIUM Distribute 4K or HD video for Broadcaster as Digital TV Broadcasting & Distribution platform headend, Facility Monitoring, Move HD 4K video content to suites, lobby, sales, content review, confidence monitoring, over existing coax & CATx networks, Digital Signage & Messaging, Distributed VideoWalls over Coax & IP, Multiview for offices and control rooms, Deliver content from any source to boardrooms, conference rooms, report pool & briefing areas
Healthcare Video Distribution
PVI INFINIUM Distribute 4K or HD cable & satellite programming to waiting areas & patient rooms, Patient, Visitor and Staff Entertainment, Patient and Staff Education, rehabilitation and diagnosis information, Board rooms, training rooms, conference rooms, break areas & offices, Digital signage, Enhance Learning & Collaboration, Telemedicine, Video conferencing, CEO messages, & remote presenters any where on campus, procedures, rehabilitation and diagnosis information
GYM Television Video Distribution
PVI INFINIUM Distribute 4K or HD TV in GYMs to cardio machines screens - spinning or pool or spa or exercise rooms, training channels, info channels, event channels, music channels, distribution of Internet / Off-Air / satellite / cable channels, on regular TVs or IP devices, signals to built-in treadmills TVs with different formats and resolutions as needed, plug' n play
SPORTS Arenas & Stadiums
PVI INFINIUM Distribute 4K or HD video in sports arenas or stadiums to unlimited TV, Screens, Projectors, Score Boards, over Coax and IP at the same time. Using regular 4K Screens over coax the distribution can run to unlimited TV sets at any distance. Over IP can run over common 1-Gigabit network switches and receive over IP-TVs, Android Boxes, Multicast Smart-TVs, and any other IPTV player device or App.
Transportation
PVI INFINIUM Distribute 4K or HD video on board of trains or transportaion systems as well on transportation platforms screens or videowalls with key information, digital signage, television, advertising, compatible with any multi-HDMI pc cards, horizontal & vertical modes. Using regular 4K Screens over coax the distribution can run to unlimited TV sets at any distance. Over IP can run over common 1-Gigabit network switches and receive over IP-TVs, Android Boxes, Multicast Smart-TVs, and any other IPTV player device or App.
Security networks Monitoring
PVI INFINIUM Distribute 4K or HD security cameras feeds, DVR, IP security systems, convert to secure coaxial and IP video feeds to drive monitors or video wall systems anywhere over coax and IP, full quality and real-time, with the ability to capture and store any channel and video footage over servers or professional disk & media recorders, also in a different place from the control room for maximum security.
|
14 Slots Multi-Channel
PVI Infinium Chassis can install up to 14 cards
PVI Infinium 4K Video Distribution System Chassis is a professional broadcasting 4k live streaming headend solution with redundant hot-swappable power supplies and dual hot-swappable super-quiet fans which can install up to 14 Hot Swappable Cards including 4K HEVC SRT Video encoders, HD Encoders, SDI encoders, with Multi-Gigabit RTMP HLS SRT M3U8 UDP RTSP RTP HTTP IPTV IP Live streaming multi-port server for maximum throughput & redundancy. Where Coaxial TV Distribution is needed, a special slot on the left side can also install our 4K RF Coaxial Modulator module based on our Award Winning VeCOAX technology to deliver HD & 4K channels to regular 4K TVs over coax.
|
HOT-SWAPPABLE Operation
PVI INFINIUM is always OnAIR on your networks
PVI INFINIUM 4K Video Distribution solution has fully redundant host swappable cards technology which makes it possible to service or expand the installed cards one by one independently without never ever turning off the whole system. With PVI INFINIUM you can always count to be ONAIR with your channels.
UP To HDMI 2.0b 4K@60 HDR+ Channels
PVI INFINIUM Handles the New Formats
PVI INFINIUM 4K Encoders Cards are available with HDMI 2.0b 18 gigabit per second HDR+ Dolby Vision inputs, perfectly compatible to the newest HDMI 4K video sources, to encode and deliver real full quality 4K over IP or Coaxial networks using our ultimate HEVC or H.264 compression algorithms. Our EDID control will set the video source up to HDMI 2.0b 18Gbps mode to get full color depth and maximum quality so the result on the playback TVs and devices will be Amazing. With PVI INFINIUM video quality exceeds the expecttions.
Still Need HD?
PVI INFINIUM Handles all HD Formats
PVI INFINIUM Video Distribution Chassis can install HD Video Encoder Cards available for both HDMI or 3G-SDI sources to encode and distribute any 480p 576p 720P 1080i 1080p or non-standard sources to h.264 or HEVC compressed streams with the ultimated HDR-optimized HD motion estimation algorithms. For NON-4K video sources the INFINIUM HD-ONLY Video Encoder Cards delivers amazing
HD video quality with new lowest bitrates.
Multi-Gigabit Unicast Server
PVI INFINIUM can Handle Thousands of simultaneous connected users
IP Streaming to Smart TVs or Phones or Tablets or Direct to browsers HTML5 requires the UNICAST SERVER method as each playback is a unique "on-demand" connection. The PVI INFINIUM has multiple built-in gigabit-class UNICAST SERVERS, one per each channel so it can accomodate thousands of user at the same time, with no problems.
Over a Local network switch, the Gigabit switch will digest and reroute the full 14 Gigabit INFINIUM capacity on demand to each user (14 INFINIUM channels installed each connected with one cable to the main layer2 or layer3 network switch). For internet direct streaming the limit is the available local internet connection bandwidth, however it is always possible to send one stream per channel to larger streaming platform such as YOUTUBE or AWS or similar, so they can repeat and deliver the live streaming to million of concurent users at the same time.
For SRT capable players such as VLC Videolan based devices or our PVI VEPLAYER hardware decoder, the PVI INFINIUM comes already with the ultimate SRT super ultra low latency performance so the latency over the intenret can be 50 milliseconds plus the internet TTL.

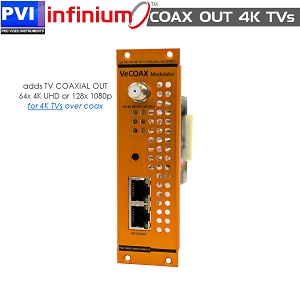

Add 4K Over Coax
PVI INFINIUM upgrades any Existing TV Coax Distribution To 4K 60 HDR+
Where needed the PVI INFINIUM chassis can add a specific add-on 4K Modulator module to deliver the HD 4K Channels also over coax up to Full 4K @60 hdr+ to an unlimited number of 4K TVs without the need to change the actual TV Coax Cables installation including amplifiers or splitters. All stays the same, simply add the PVI INFINIUM with the 4K RF Modulator module, based on our AWARD WINNING VeCOAX Technology. With PVI INFINIUM IP Streaming & Coaxial networks, HD 4K works all at the same time, with one single modular expandable unit. No Limits.
|
