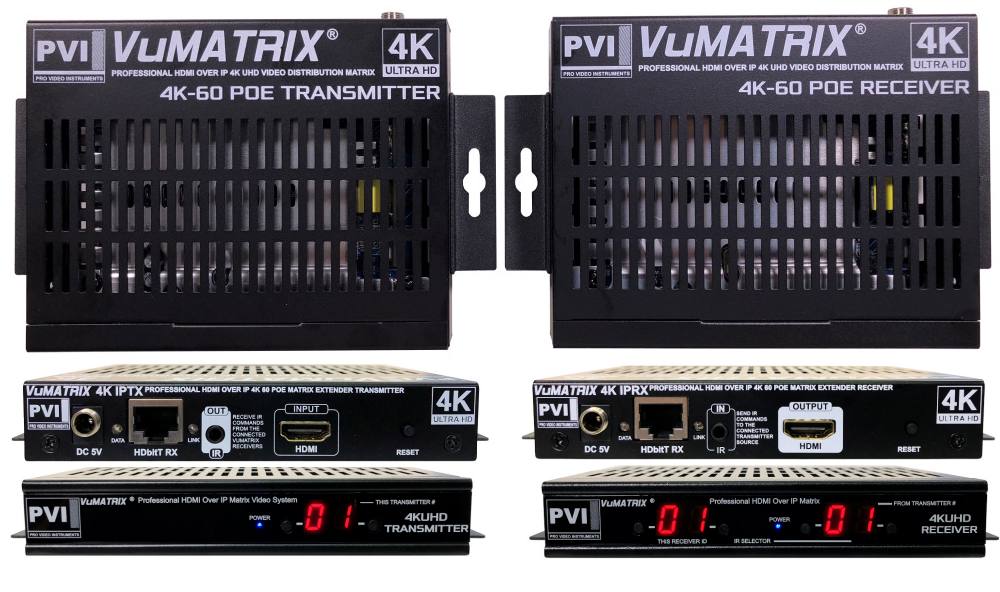

VUMATRIX HD 4K POE HDMI OVER IP Matrix extender distribute your HD and 4K hdmi video over the existing ip network with real time perfect quality - VUMATRIX-HD-4K-POE-KIT

VUMATRIX HD 4K POE HDMI OVER IP Matrix extender distribute your HD and 4K hdmi video over the existing ip network with real time perfect quality - VUMATRIX-HD-4K-POE-KIT

In Stock, Get It by Tomorrow
$695.00
Free Ground Shipping.
0649070906197

This Model Key Features:

•CREATE Your HDMI Over IP video distribution simply adding as many vumatrix transmitters and receivers you need on your 1-gigabit ethernet

•CONTROL your Vumatrix channels Switch using our FREE PHONE TABLET CONTROL APP or use your ir remote or home automation

•DISTRIBUTE any HD 4K HDMI Video sources and remote-control it from any room with the built-in vumatrix ir infrared over ip extender (included)

•NO SPECIAL SWITCH needed - Vumatrix works over your existing 1-gigabit ethernet lan network with perfect HD and 4K quality

•PLUG 'N PLAY ZERO CONFIGURATION - Simple to install anywhere in minutes - expand at any time by adding more units to your network

Application examples of How To Use This Model:

how to make an hdmi over ip matrix extender video distribution system

HDMI Over IP Matrix Extender with APP Control

VUMATRIX distribute your HDMI Video Sources over your POE Ethernet network with perfect Full HD / 4K60 Quality and Matrix Switch Control

PVI VUMATRIX HD-4K-POE-KIT distribute your HD and 4K video over your existing 1 gigabit ip ethernet lan network switch router with simple plug 'n play installation anywhere, also using the POE power over ethernet where available so there is no need to use the included AC power adapter.
Simply add one Vumatrix transmitter per each of your Video Sources you want to distribute, and one Vumatrix Receiver behind each TV connected to the TV HDMI port..

how to make an hdmi over ip matrix extender video distribution system

You can always expand the system as you need at any time by simply adding more Vumatrix HDMI Over IP Transmitters and Receivers.
Use our FREE APP on your Tablets and Smart Phones to switch any TV to the wanted hdmi source in one click.
With our app you can create PRESETS to click and switch multiple TVs to the wanted source, ideal for commercial, bar, schools, churces, home events, etc, with the ability to define sources, destinations and presets names.
Matrix Switch Control can also be done from ir infrared remote controls and any home automation.
With Vumatrix you can install all your HDMI video sources in one closet, then decide room by room, tv by tv, which source you want to watch Each Vumatrix unit includes the IR Infrared over ip bridge so you can remote-control the watched source from any room and any tv with the regular remote. There is no need for any special switch nor configuration, simply set the ID number per each transmitter on the transmitter display, then start using your video network.
The VUMATRIX is the ideal, simple to install, professional, cost effective Newest solution for any HDMI OVER IP Matrix and Video Distribution, were perfect quality and simple reliable operation for everyone are wanted.

Zero-Configuration

Connect your switch router, Up to 99 Transmitters, Unlimited Receivers,
Plug 'n Play, Anywhere!

how to make an hdmi over ip matrix extender video distribution system
Connect your VUMATRIX hdmi over ip transmitters and receivers over your existing 1 Gigabit switch router, plug 'n play Anywhere, with no need for any special configuration or dedicated network.  Add up to 99 Transmitters and Unlimited Receivers anywhere, also cascading multiple 1 Gigabit switches.


Set Transmitters IDs

Use the Front Buttons, Set each HDMI Transmitter, to a different source ID

how to make an hdmi over ip matrix extender video distribution system
Install One VUMATRIX hdmi over ip Transmitter per each of your HDMI Video sources then use the front buttons to set each transmitter to a different number.  No computer required. Simple in few clicks.  Up to 99 hdmi over ip Transmitters can be added to your 1 gigabit ip network, also through cascaded 1 gigabit switches without loss of quality, shared with other regular network traffic.


Set Receivers IDs

Use the Front Buttons, Set each HDMI Receiver, to a different display ID

how to make an hdmi over ip matrix extender video distribution system
Install One VUMATRIX hdmi over ip Receiver per each of your HDMI TVs / Displays / Projectors, then use the front buttons to set each receiver to a different number.  No computer required. Simple in few clicks.  Up to unlimited hdmi over ip Receivers can be added to your 1 gigabit ip network, also through cascaded 1 gigabit switches without loss of quality, shared with other regular network traffic.


Connect your Sources

SD / HD / 4K up to Full UHD @60 4:4:4 HDR Dolby Vision HDMI 2.0  HDCP 2.2

how to make an hdmi over ip matrix extender video distribution system
VUMATRIX HD-4K-POE-KIT hdmi over ip matrix extender supports any HDMI Video source up to HDMI-2.0 HDCP-2.2 with FULL PERFECT QUALITY 4:4:4 60 Frames per second perfect motion and HDR for HDR displays.


Connect your TVs

HDMI EDID auto-detection drives precisely your screens, always perfect

how to make an hdmi over ip matrix extender video distribution system
VUMATRIX HD-4K-POE-KIT hdmi over ip receiver can connect to any TV, Display, Projector, with automatic EDID detection and scaling in case the display cannot support the actual resolution in use, so the playback of the selected transmitter source is always automatically perfect.  The VuMATRIX HD-4K-POE-KIT Receiver can output any resolution from HD up to true Full 4K UHD 60 Frames per second 4:4:4 and supports HDR and Dolby Vision displays. Full Best Quality.


Any Remote Control

Change the Channel on each receiver using the included IR Remote, or via any third party controller and automation, IR, API, IP

how to make an hdmi over ip matrix extender video distribution system
VUMATRIX HD-4K-POE-KIT receivers comes with our IR Remote control included, so you can switch the receiver to any transmitter channel in one click, as well from the receiver front panel buttons.  Simple for everyone and Reliable at all times.  You can also learn our IR commands on any programmable control system and automation, or use over IP API Telnet commands, easy to add to any standard generic driver, up to date with the automation release version you are using.

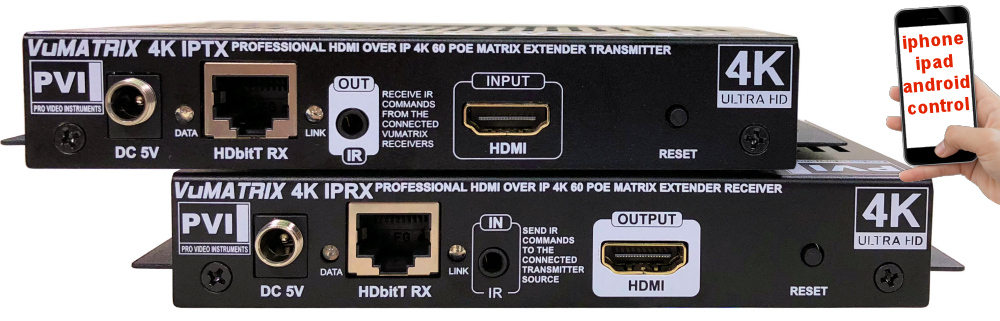

Iphone / Ipad / Android Control

Use our VUMATRIX Smart Controller unit and download the VUMATRIX Free App from Apple Store or Google Play

how to make an hdmi over ip matrix extender video distribution system
VUMATRIX HD-4K-POE-KIT can be controlled via your Iphones / Ipads /Android Phones and Tablets simply using our Smart Controller Unit downloading our VUMATRIX Free App from the Apple Store or Google Play.  With our App you have no limits and can create scenarios you can recall by name in one click.


POE Power Over Ethernet

One cable only installation, simple, quick, clean, no extra power supplies

how to make an hdmi over ip matrix extender video distribution system
VUMATRIX HD-4K-POE-KIT can be directly powered by your switch if it supports the POE power over ethernet function, via the CATx cable, with a 5 watts per unit ultra low - green consumption. One Wire simple and clean installation.


Pro Power Adapters

Included in the Kit, to operate the units if POE is not available from your switch, with security screw-lock connector

how to make an hdmi over ip matrix extender video distribution system
If your switch does not support POE power over ethernet, the VuMATRIX hdmi over ip extender matrix system can be powered by simply using the Professional Power Adapters INCLUDED IN THE BOX, pro types with safety-screw lock connector for secure operation without disconnections.


Simple Installation

Installs and works anywhere in minutes

how to make an hdmi over ip matrix extender video distribution system
The VUMATRIX HD-4K-POE-KIT units comes with Side Ears for an easy and flexible installation Anywhere.  An optional Rack Rail Kit is also available to install up to 15 VuMATRIX transmitters per each 4RU Rack space.


Compact & Cool

Noise-less, Fan-Less, does not heat, can install anywhere without disturbing nor special requirements

how to make an hdmi over ip matrix extender video distribution system
The VUMATRIX HD-4K-POE units are compact, noiseless, fanless, cool operation without heating, you can install it anywhere, behind TVs, in closets, racks, from 36F to 120F operation and non-condensing humidity up to 95%.


The Best HDMI Matrix

Modular, Flexible, HD & 4K, Expandable by adding modules at any time in one click

how to make an hdmi over ip matrix extender video distribution system
The VUMATRIX HD-4K-POE technology delivers you the all the benefits of the HDMI Over IP Video distribution, flexible to configure any size of matrix, expandable by adding modules anywhere at any time, without bothering you with special manual configurations, dedicated switches or cables, and the ability to replace any module by simply setting the same number on the display, with 5 year of warranty.  PVI Made In USA.


What's in the Box

Turn Key - One Transmitter + One Receiver.  Buy more kits for more transmitters & receivers, or the expansion receivers as you project needs.

how to make an hdmi over ip matrix extender video distribution system
VUMATRIX HD-4K-POE-KIT:   Turn-Key hdmi over ip matrix extender with one transmitter + one receiver, ir remote control to change the channels on the receiver, two professional screw-lock power supplies, one IR EYE receiver to capture the IR controls to send to the hdmi source, one IR EYE transmitter to control the HDMI source, mounting kit, paper manual, web site update link card.



Key Benefits:

  • POE Power Over Ethernet - use power provided by your POE switch if available
    otherwise can use the regular AC power adapters ( included )

  • Zero Configuration - connect it and use it out of the box

  • ANY Switch Router - no need for special or dedicated ones

  • Cascade Multiple Switches - works also when multiple switches are interconnected

  • Together with other IP Traffic - works on your existing IP cables

  • Simple To Use - switch channel via IR Remote or front buttons

  • Iphone Ipad Android App Control - add our Smart Controller & download our Free App

  • App Save-recall Scenes - prepare and save your favorite presets and recall in one click

  • Integrates with Automations - Via IR or Telnet API using the standard drivers

  • Up To Full 4K UHD - 60 Frames Per Second, 4:4:4, Dolby Vision, HDR

  • HDMI 2.0 / HDCP 2.2 - connects to any source and any TV / Screen / Projector

  • Highly Reliable - can replace any unit by setting the same ID number

  • 5 YEAR WARRANTY - Made In Usa

how to make an hdmi over ip matrix extender video distribution system

Documents

*All Specifications Subject to Change Without Notice

DOCUMENTS
  VuMATRIX-HD-4K-POE-KIT PDF

Specification

*All Specifications Subject to Change Without Notice

TECH SPECS
Model Name VuMATRIX-HD-4K-POE-KIT
SKU 0649070906197
AC Power Adapter 100-240 VAC 50/60 Hz, 8W max. 5W Typical IEC 60320-C14 - Secure Screw-Lock Professional Type
POE Power Over Ethernet Standard POE - 5Watts Max
Cooling Fan-Less Noise-Less
Temperature/Humidity +32 F° to +115 F° (0 C° to +46 C°) / 10% to 80% non-condensing
Vibration NSTA 1A in carton
MTBF 55,000 hours
Compliance FCC Class A, IEC60065, EN61000, CE, RoHS, RCM C-Tick
Enclosure Type EMI Shielded Metal
Mounting Side Ears
Enclosure Dimensions Body without ears 4.2"(105mm) x 5.3"(130mm) x 0.9"(23mm)
Side ears - each 0.4"(10mm) x 4.2"(105mm)
Total with side ears 4.9"(125mm) x 5.3"(130mm) x 0.9"(23mm)
System Weight 1 lb (450grams)
Carton Dimensions (Individual)
Shipping Weight
Warranty 5 years

INSTALLATION
Network Works on any 1 Gigabit network router / switch with Video Multicast capabilities and IGMP ( standard features for any multimedia capable switch router )
Configurations ZERO CONFIGURATION - Plug 'n Play - Simply set the ID on each unit from the front display and buttons, and use it
Shared Networks Yes - Can work together with any other network traffic, requires the IGMP and MULTICAST functions ( switch - router must be 1 gigabit multimedia capable )
Local Control Panel buttons to set unit ID and select to which ID to connect and play
IR Remote Control Via IR Infra Red controller ( included one per each receiver )
IR Codes and commands can be learned on any automation system for third party control
IP Remote Control Via API and/or PC Software ( included )
Iphone /Ipad / Android
App Control
Add one VUMATRIX SMART CONTROLLER UNIT ( optional ) per each installation.
Allows use of the Free VuMATRIX APP downloadable from the APP Store or Google Play
API CONTROL Add one VUMATRIX SMART CONTROLLER UNIT ( optional ) per each installation.
Same Smart Controller can be used for both Iphone Ipad Android control at same time
Allows connection over ip from third party automation such as Crestron Control4 RTI AMX etc.

VIDEO INPUT
HDMI Licensed HDMI input - compatible to any HDMI Video Source up to 4K 4:4:4 60 Frames per second HDMI 2.0 HDCP 2.2 - HDR compatible
HDMI Version up to HDMI 2.0  HDCP 2.2 - HDR - DOLBY VISION
EDID Control Advanced EDID control compatible with any HDMI Video source
AUTO Detection Auto frame-rate input switching
Video Resolutions any SD HD VGA PC resolution up to full 4K 4:4:4 60 FPS
Frames Ratio 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 FPS
Aspect Ratios All Supported

AUDIO INPUT
HDMI AUDIO Any HDMI Embedded Digital Audio

VIDEO OUTPUT
HDMI Licensed HDMI output - compatible to any HDMI Video TV Display Projector up to 4K 4:4:4 60 Frames per second HDMI 2.0 HDCP 2.2 - HDR compatible
HDMI Version up to HDMI 2.0  HDCP 2.2 - HDR - DOLBY VISION
EDID Control Advanced EDID control compatible with any HDMI Video display, with automatic scaling if display resolution is lower that the selected transmitter source

AUDIO OUTPUT
HDMI AUDIO Any HDMI Embedded Digital Audio
