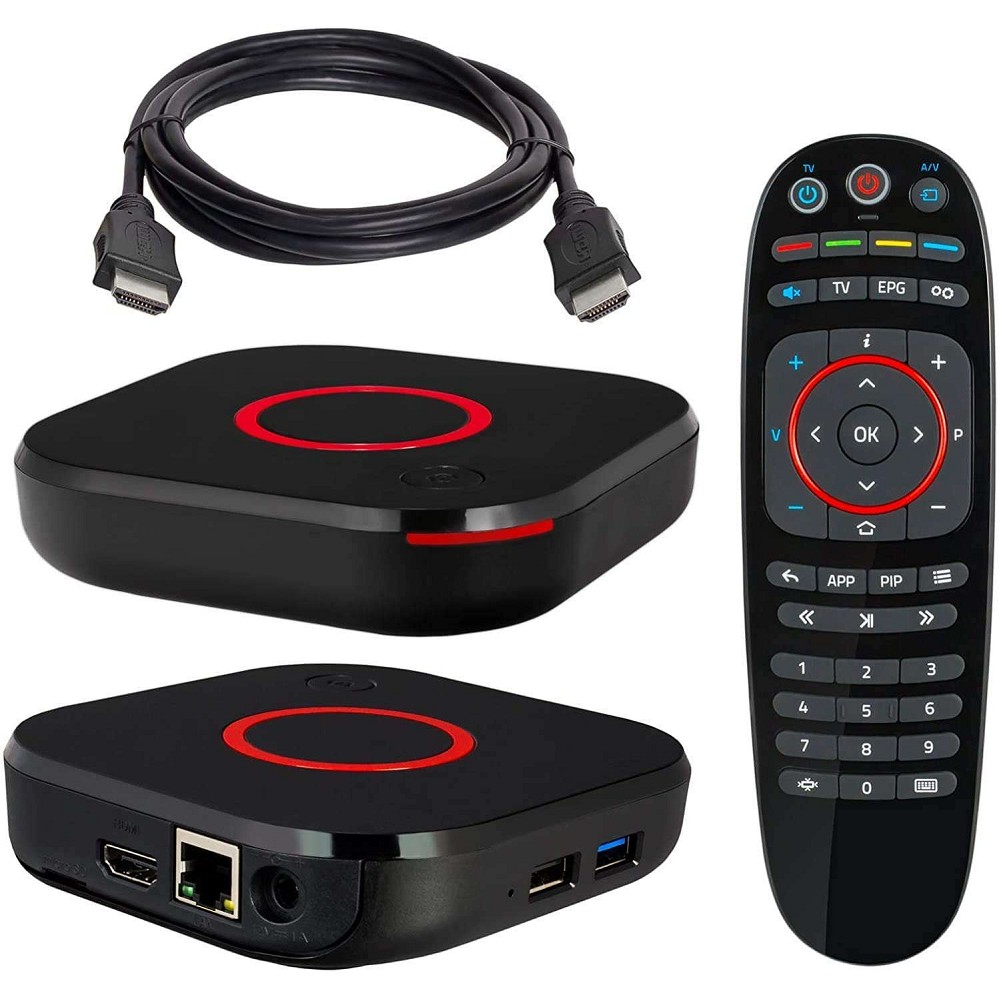

IPdecoder HD 4K IPTV to HDMI Decoder

Application examples of How To Use This Model:

When Purchased with our IP Encoders such as INFINIUM or VeCASTER or VeCODER, we can Pre-Upload your MULTICAST channel list, so the installation is PLUG N PLAY over your LAN Ethernet Networks.

Channel List can be loaded via simple TXT file via usb from the OSD password-protected admin menu.  Alternatively, it is possible to set an IP ADDRESS of a computer over the same network to load the updated channel list every time the IPdecoder is powered up.

Channel List can include both Our Encoders Channels PLUS any internet external channels, as needed, all together seamless.

Powered by the Amlogic S905X2, IPdecoder-4K is a high-performance media player that can run for months without rebooting. The device has no problem handling popular video formats, including 4K, supports 8-channel audio, and has all the modern connectivity staples.

IPdecoder-4K supports 4K, HEVC, HDR, and 60 fps video, so the viewers can enjoy reliable and smooth playback of high-resolution video with high contrast and vibrant colors. It is capable of producing a picture that is almost identical to that seen by the human eye.

Dimensions

Width/depth/height, (mm)	115x115x28
Weight, g	170

Hardware

Chipset	Amlogic S905X2
Processor	Quad-core ARM Cortex-A53, 1,900 MHz
Performance	18 400 DMIPS
RAM	1 GB DDR3
Flash memory	4 GB eMMC

Software

Operating system	Linux 4.9
Middleware supported	Image enhancement with operator’s applications, customization, or full replacement available

Interfaces

HDMI 2.1, 100 Mbps Ethernet, USB 3.0 × 1, USB 2.0 × 1, built-in 2T2R ac Wi-Fi module

Sources of media content

PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices

Audio & video

Audio Codecs	MP3, MPA, M4A, OGG, WAV, AAC, Dolby
Audio formats	MP3, MPA, M4A, OGG, WAV, AAC
Video modes	2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL
Video codecs	H.265/HEVC, H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support
Video containers	TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP
Image formats	JPEG, PNG, BMP, RAW
Subtitles	DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning
Playlist formats	M3U, M3U8, PLS, CUE



Standard set

IPdecoder-4K set-top box, user manual, HDMI cable, 12V 1A power adapter, remote control, 2x AAA batteries, packaging

Notice: PVI reserves the rights to change the casing look of this product and the specs in order to improve the product to support the always improving mpeg compressions standards & chipsets.

The here provided picture is only for reference and the product look might change without notice.  Purchasing this product you accept these conditions.

The delivered product will be always with same or better technical specs, following the always changing video compression technology improvements.
