The INFINIUM 1080p HEVC Encoder Card is built for efficiency. It ingests any HDMI HD source and compresses it with HEVC so you can run more simultaneous channels on the same network or internet connection without giving up picture quality. It is the ideal choice for IPTV headends, hospitality, education, and corporate distribution where channel count and bandwidth both matter.

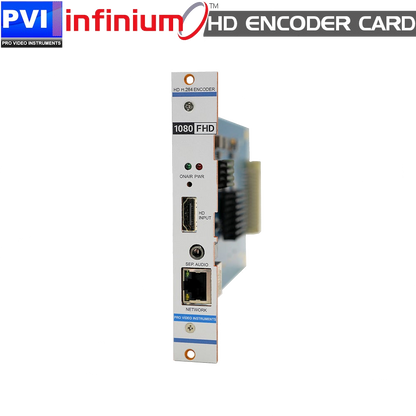

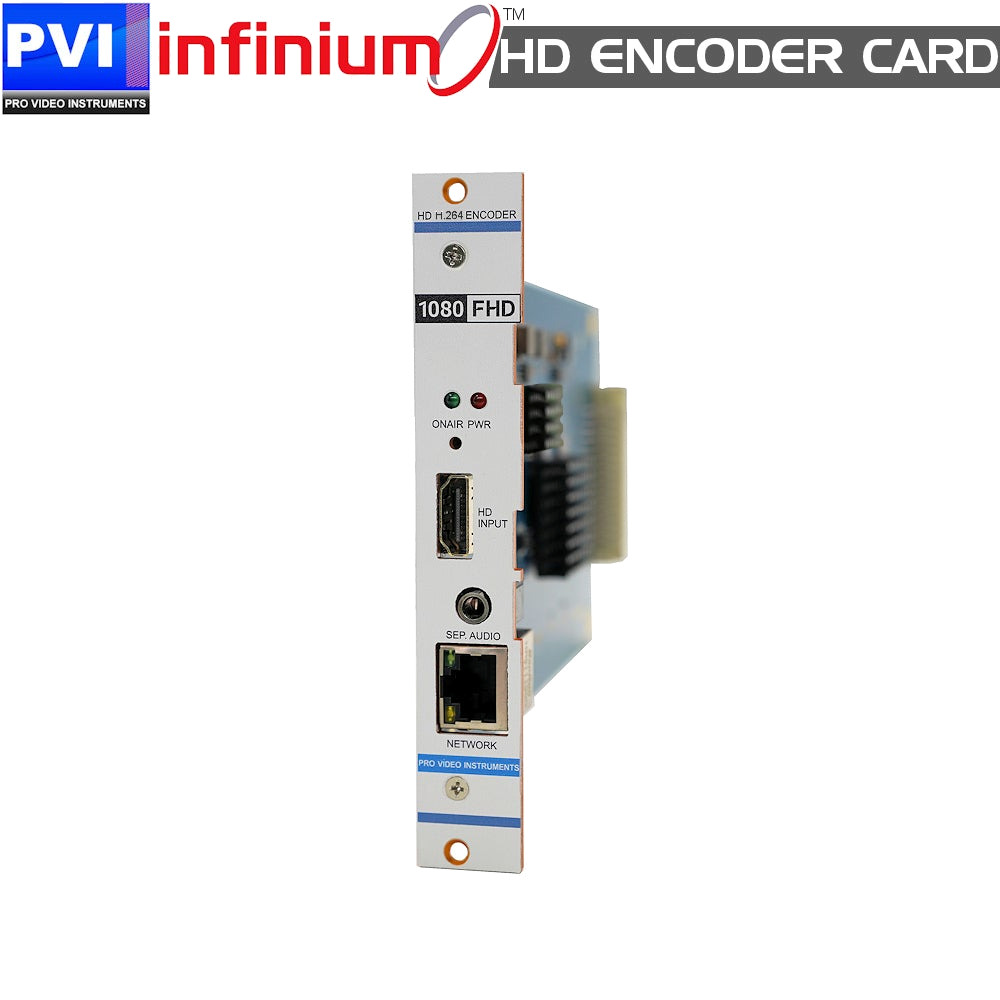

HD HEVC Encoder Card
Gorgeous HD at the Lowest Bitrate
The smart way to pack more HD channels onto one network. HEVC (H.265) encoding from any HDMI source delivers beautiful 1080p while using up to four times less bandwidth than H.264.
Capabilities
More Channels, Less Bandwidth
HEVC efficiency means you reach more devices and run more channels on the infrastructure you already have — with crisp, broadcast-quality HD.
- Four simultaneous streams — different compression & resolution each, with logos & watermarks
- SRT ultra-low latency down to 50 ms · RTMP, M3U8, HLS, HTTP, UDP, RTP, RTSP, ONVIF
- Built-in 100 Mb unicast server · multicast (IGMP v1/v2/v3) to unlimited devices
- Stream direct to YouTube, AWS, or Facebook — and to several platforms at once
- Auto-reconnect and SRT decoder compatibility (VLC and our VePlayer)
IP + Coax

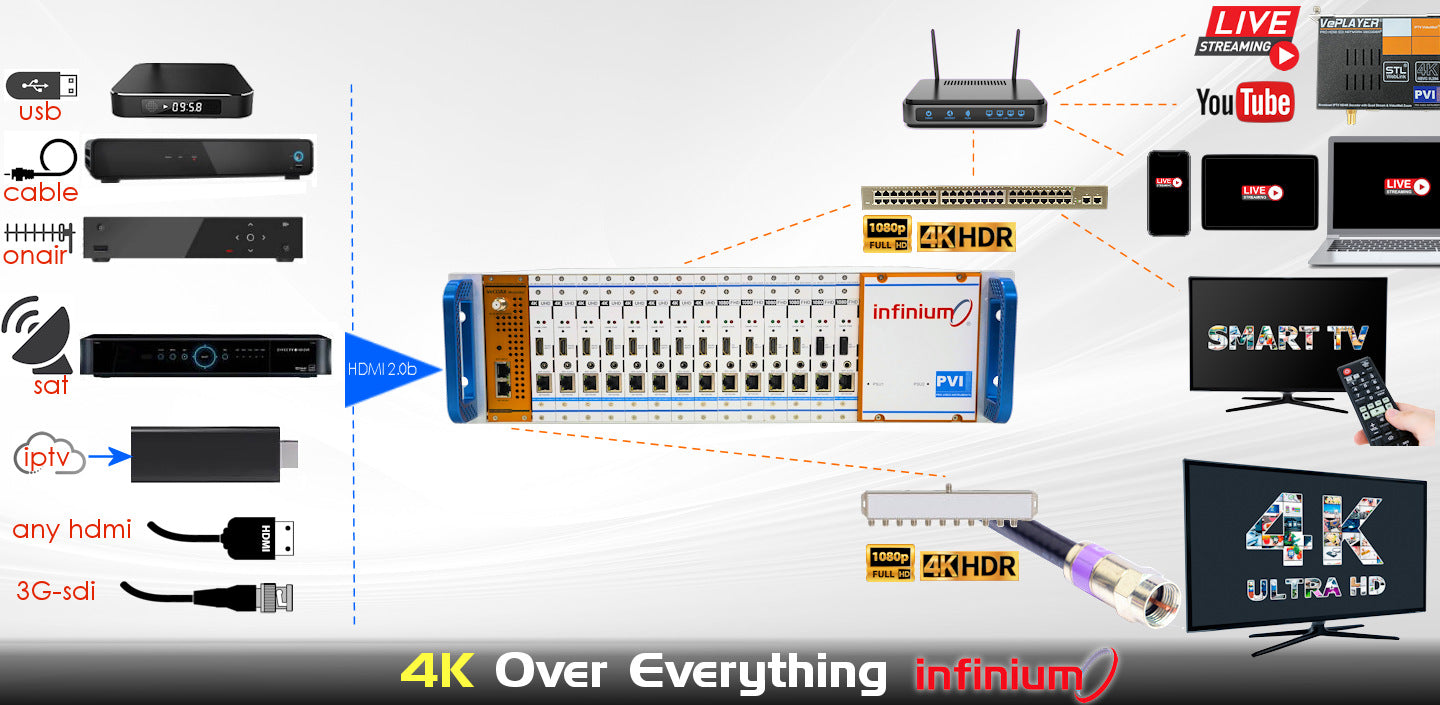

HD Everywhere — IP and Coax
Stream HD to smart TVs, phones, browsers, and IPTV boxes, and pair with the 4K-over-coax module to deliver the same channel over existing coax to any television.
This card streams HD to any IP destination and, with the chassis 4K-over-coax module, delivers the same channel as a digital TV channel over your existing coaxial cabling. One efficient HD source, every screen in the building.
Features
Efficient HD Encoding
Maximum channel density for your INFINIUM headend.
1080p HD
HDMI input up to 1080p 4:4:4 with closed-caption support.
HEVC Efficiency
HEVC (H.265) saves up to 4× the bandwidth versus H.264.
4 Streams at Once
Up to four simultaneous outputs, each its own format and protocol.

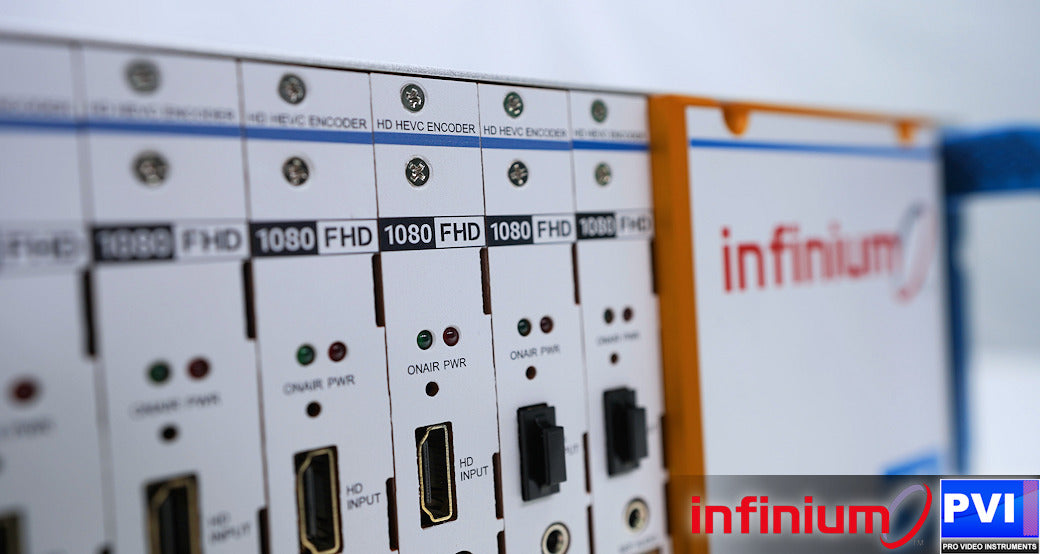

SRT Low Latency
Auto-error-corrected SRT down to 50 ms plus network travel time.
Unicast + Multicast
Built-in server plus IGMP multicast to unlimited devices on a capable network.

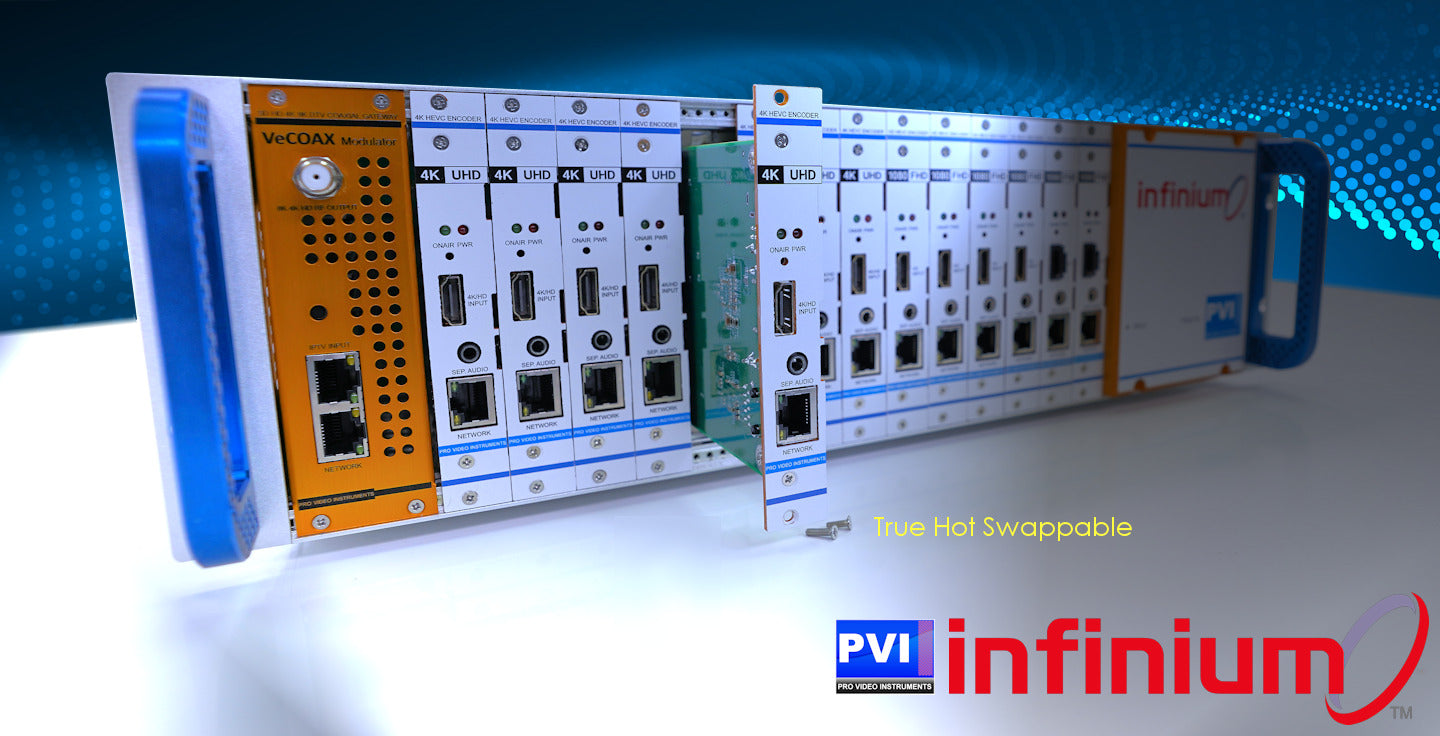

Hot-Swappable
Add or remove from the chassis live — no downtime for other channels.
Specifications
1080p HEVC Card Specifications
| Card Type | Hot-swappable HD encoder card for the INFINIUM 4K chassis |
| Video Input | 1× HDMI (up to 1.4, 10 Gbps), gold-plated |
| Max Resolution | 1080p 4:4:4 with closed-caption support |
| Video Compression | HEVC (H.265), H.264, MJPEG · logos & watermarks |
| Simultaneous Streams | Up to 4 independent streams, each its own format/protocol |
| Audio | HDMI embedded or 3.5 mm analog stereo · AC3 / AAC / MP2 / MP3 / PCM |
| Streaming Protocols | SRT, RTMP(S), HLS, HTTP, RTSP, RTP, FLV, ONVIF, UDP/RTP unicast & multicast |
| Latency | SRT as low as 50 ms plus network travel time |
| Unicast Server | Built-in hardware secure server, up to 100 Mbps connections |
| Multicast | IGMP v1/v2/v3 — unlimited devices over a multicast-capable network |
| Network | RJ-45 (CAT5–CAT8); Layer 2 video switch recommended; direct-to-router capable |
| Hot-Swap | Gold-plated, dust/humidity/vibration-proof bus connector — 100% hot-swappable |
| SKU | INF-ENC-HD-HEVC-HDMI |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
INFINIUM 1080p HEVC Card — FAQ
What is the advantage of the HEVC HD card over the H.264 HD card?
Both encode 1080p HD from HDMI. The HEVC card uses H.265 to deliver the same quality at roughly one-quarter the bitrate, so you can run more channels or reach more viewers on the same bandwidth. The H.264 card is the most universally compatible and the most affordable.
How many channels can I fit in one chassis with HD HEVC cards?
Up to 14 cards per chassis, so up to 14 independent HD channels. HEVC's low bitrate means even a full lineup fits comfortably on a gigabit network.
Can it output several streams simultaneously?
Yes — up to 4 simultaneous streams, each with its own compression (HEVC, H.264, or MJPEG), resolution, bitrate, and protocol.
Does it support SRT and multicast?
Yes. SRT ultra-low-latency is built in, along with RTMP(S), HLS, HTTP, RTSP, RTP, FLV, ONVIF, and UDP/RTP. IGMP v1/v2/v3 multicast reaches unlimited devices on a capable network.
Can I send this HD channel over coax?
Yes — add the INFINIUM 4K-over-coax module to the chassis and the HD channel is delivered over existing coax as a digital TV channel to any television.
What sources work with this card?
Any HDMI HD source — cameras, computers, media players, cable/satellite boxes, signage players, and switchers up to 1080p.
Does it require the INFINIUM chassis?
Yes. It installs in the INFINIUM 4K Video Distribution Chassis, which provides power, cooling, redundancy, and the network/RF backplane.
Build Your System
Add Encoder Cards & the 4K-Over-Coax Module
The INFINIUM 4K chassis is the foundation. Choose the hot-swappable cards your installation needs — mix HD and 4K, HDMI and SDI — and add the 4K-over-coax module when you need real 4K channels on existing TVs.
INFINIUM 4K System Chassis
4RU hot-swap with dual power supply.
16 slots for 16 cards or 14 cards + RF module.
$1,195.00$995.00You save $200.00
4K-Over-Coax RF Modulator Module
Add real 4K channels over existing coax — QAM, ATSC, DVB-T/C, ISDB-T.
$2,495.00
1080p H.264 HDMI Encoder Card
Universal HD H.264 encoding from HDMI — the most compatible format for any player.
$549.00$495.00You save $54.00
1080p HEVC HDMI Encoder Card
Efficient HD HEVC (H.265) encoding from HDMI — best quality at the lowest bitrate.
$1,195.00$995.00You save $200.00
3G-SDI HEVC Encoder Card
Broadcast 3G-SDI HD encoder with HEVC or H.264 for SDI cameras and switchers.
$1,195.00$995.00You save $200.00
4K30 HEVC HDMI Encoder Card
True 4K@30 HEVC from HDMI 2.0b for IP streaming and 4K-over-coax distribution.
$1,695.00$1,495.00You save $200.00
4K60 HEVC HDMI / 12G-SDI Encoder Card
Flagship broadcast 4K@60 card — HDMI 2.0b + 12G-SDI input, up to 4 language pairs.
$4,950.00$3,995.00You save $955.00
Complete the Ecosystem
Decoders & Receivers
Receive INFINIUM streams anywhere with VePlayer hardware decoders — single screen, quad mosaic video walls, or broadcast SDI.
IPdecoder HD 4K — IP-to-HDMI Set-Top Decoder
IP Decoder
$149
VePLAYER 4K IPTV Decoder — HEVC H.265 / H.264
VePlayer Pro
$495
VePLAYER-SDI — Broadcast 3G-SDI Decoder
3G-SDI
$995
VePLAYER-HDMI-QUAD — 4-Stream Decoder & Video Wall
Video Wall
$695
Add Efficient HD Channels to Your INFINIUM
$995.00$1,195.00
Save $200.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
